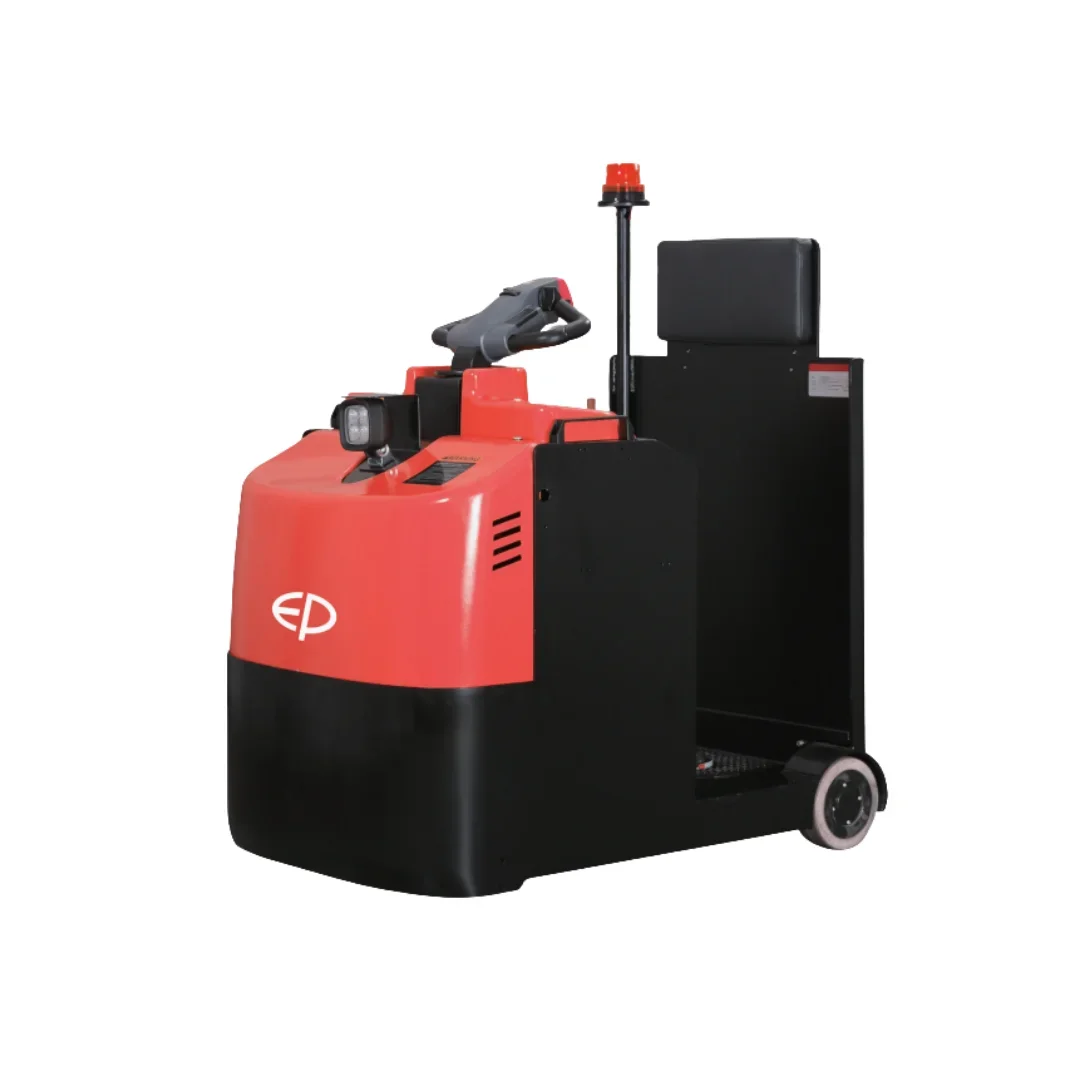

Electric tractor
QDD30S
- Towing capacity
- 3,000 kg
- Travel speed
- 5/7 km/h
- Battery
- 24 V lead-acid
Overview
An electric tractor with a towing capacity of 3,000 kg and a 24 V lead-acid battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Towing capacity
- 3,000 kg
- Travel speed, laden/unladen
- 5/7 km/h
- Battery
- 24 V lead-acid
- Turning radius
- 1,168 mm
Show all specifications Hide specifications
Performance
- Height drawbar in driving position min./max.
- 1,220 mm
- Drawbar pull, laden/unladen
- 600
- Max. drawbar pull, laden/unladen
- 2000N
- Max. gradeability, laden/unladen
- 3/15 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 2.5 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 280 Ah
- Battery type
- Lead Acid
- Battery weight
- 260 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 975 mm
- Service weight
- 760 kg
- Axle loading, unladen front/rear
- 480/280 kg
- Tread width, rear
- 708 mm
- Seat height relating to SIP/stand height
- 166 mm
- Coupling height
- 188 / 233 / 277 / 322 mm
- Overall length
- 1,282 mm
- Overall width
- 800 mm
- Ground clearance, centre of wheelbase
- 66 mm
Wheels and tyres
- Tyres
- PU
- Tyre size, front
- Ф230 × 90mm
- Tyre size, rear
- 2x Ф204 × 76mm
- Wheels, number front/rear (x=drive wheels)
- 1x+ 2/2
General
- Drive
- Electric
- Operator type
- Standing
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
