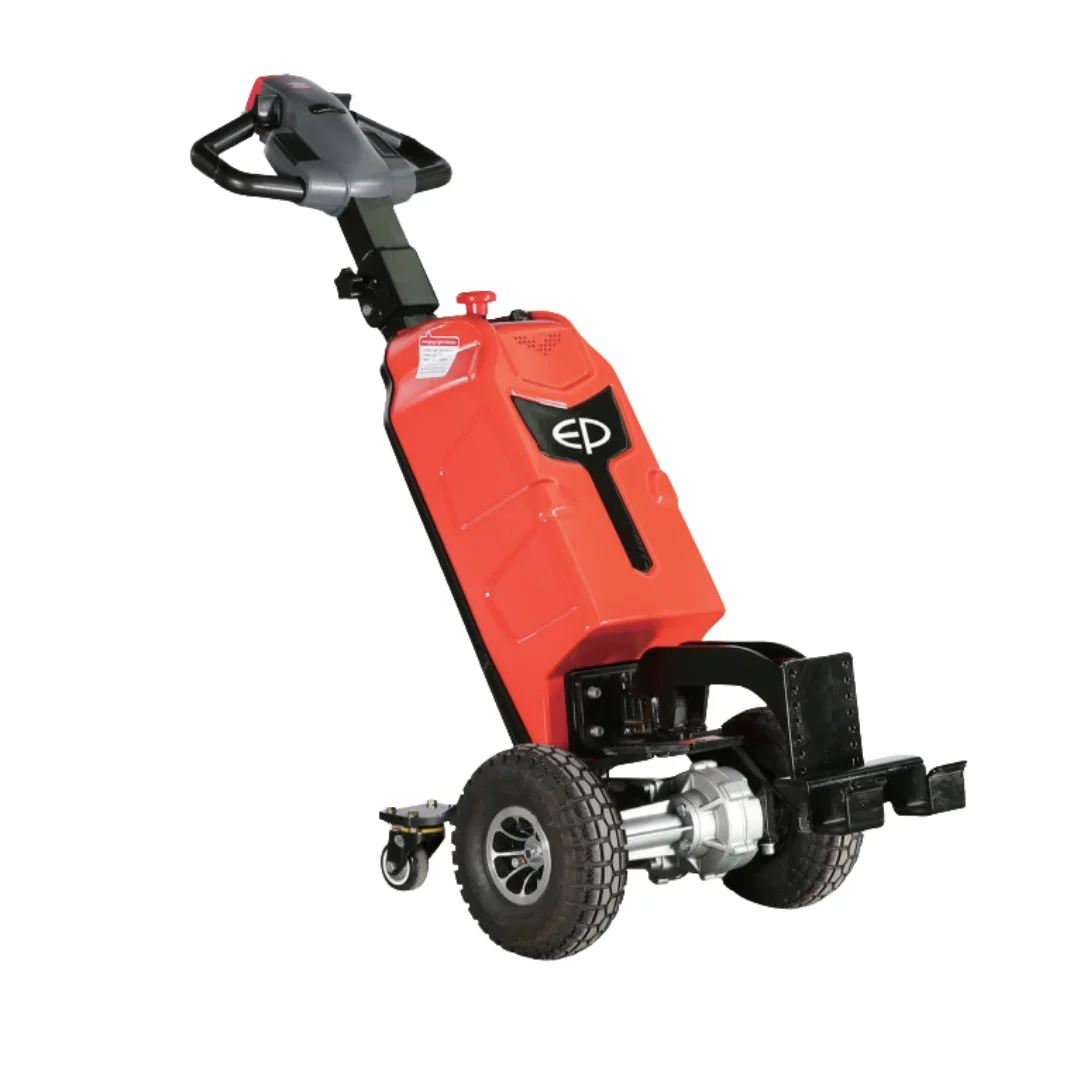

Electric tractor
QDD10
- Towing capacity
- 1,000 kg
- Travel speed
- 4.5/5 km/h
- Battery
- 2 × 12 V Li-ion
Overview
An electric tractor with a towing capacity of 1,000 kg and a 2 × 12 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Towing capacity
- 1,000 kg
- Travel speed, laden/unladen
- 4.5/5 km/h
- Battery
- 2 × 12 V Li-ion
Show all specifications Hide specifications
Performance
- Height drawbar in driving position min./max.
- 835 930 1,010 mm
- Drawbar pull, laden/unladen
- 200/0
- Max. drawbar pull, laden/unladen
- 650/0N
- Max. gradeability, laden/unladen
- 3/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.4 kW
- Battery voltage
- 2 × 12 V
- Battery nominal capacity K5
- 50 Ah
- Battery type
- Li-ion
- Battery weight
- 19 × 2 kg
- Type of drive unit
- DC
Dimensions and weight
- Wheelbase
- 315 mm
- Service weight
- 98 kg
- Axle loading, laden front/rear
- 98/0 kg
- Axle loading, unladen front/rear
- 78/20 kg
- Tread width, front
- 428 mm
- Tread width, rear
- 217 mm
- Overall height
- 890 976 1,068 mm
- Overall length
- 1,255~1,315~1,345 mm
- Overall width
- 520 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 2x Ф250 × 85mm
- Tyre size, rear
- 2x Ф75 × 32mm
- Additional wheels (castor wheels)
- -mm
- Wheels, number front/rear (x=drive wheels)
- 2x /2
General
- Drive
- Electric
- Operator type
- Pedestrian
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
Bought in Aruba. Supported in Aruba.
With ProLift you deal with one local partner, from the first question to service years later.
-
Ready to work
New machines are delivered fully assembled, inspected and ready to work.
-
Maintenance and repairs
Preventive maintenance and repairs to keep your machine running.
-
Parts
Support and parts arranged directly for Aruba, to keep downtime short.
-
One point of contact
One dedicated partner from the first quote to final delivery and beyond.
Interested in the QDD10?
Talk to ProLift. We'll help you choose the right configuration for your operation.
