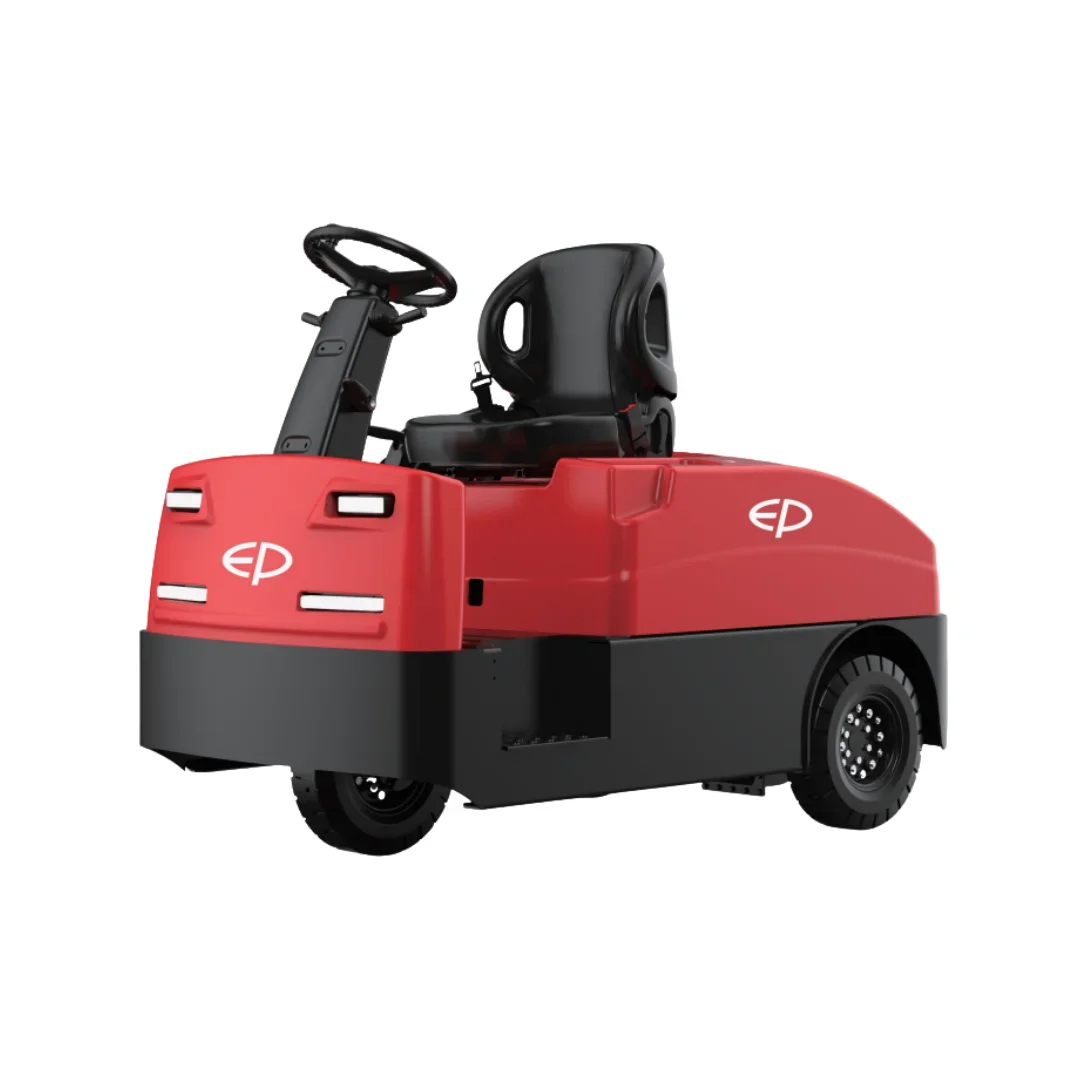

Electric tractor
QDD301T
- Towing capacity
- 3,000 kg
- Travel speed
- 7/17 km/h
- Battery
- 48 V
Overview
An electric tractor with a towing capacity of 3,000 kg and a 48 V battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Towing capacity
- 3,000 kg
- Travel speed, laden/unladen
- 7/17 km/h
- Battery
- 48 V
- Turning radius
- 1,780 mm
Show all specifications Hide specifications
Performance
- Rated drawbar pull
- 750N
- Drawbar pull, laden/unladen
- 750
- Max. drawbar pull, laden/unladen
- 3000N
- Max. gradeability, laden/unladen
- 7/25 %
- Service brake
- Hydraulic
- Parking brake
- Mechanical
- Towing coupling, type DIN 15170
- Plug-in type
Battery and drive
- Drive motor rating S2 60 min
- 4 kW
- Battery voltage/nominal capacity
- 48/240V/Ah
- Battery weight
- 430 kg
- Type of drive unit
- AC
- Charger output current
- 45 A
Dimensions and weight
- Wheelbase
- 1,105 mm
- Service weight
- 1,100 kg
- Axle loading, unladen front/rear
- 500/600 kg
- Tread width, rear
- 880 mm
- Overall height
- 1,335 mm
- Seat height relating to SIP/stand height
- 947 mm
- Coupling height
- 244/312/379 mm
- Loading height, unladen
- 587
- Length of loading surface
- 350
- Width of loading surface
- 590
- Overall length
- 1,985 mm
- Overall width
- 1,010/990 mm
- Ground clearance, centre of wheelbase
- 150 mm
- Internal turning radius
- 1,170
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 4.00-8mm
- Tyre size, rear
- 4.00-8mm
- Wheels, number front/rear (x=drive wheels)
- 1/2x
General
- Drive
- Electric
- Operator type
- Seated
- Overhang
- 505
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 70 dB(A)
