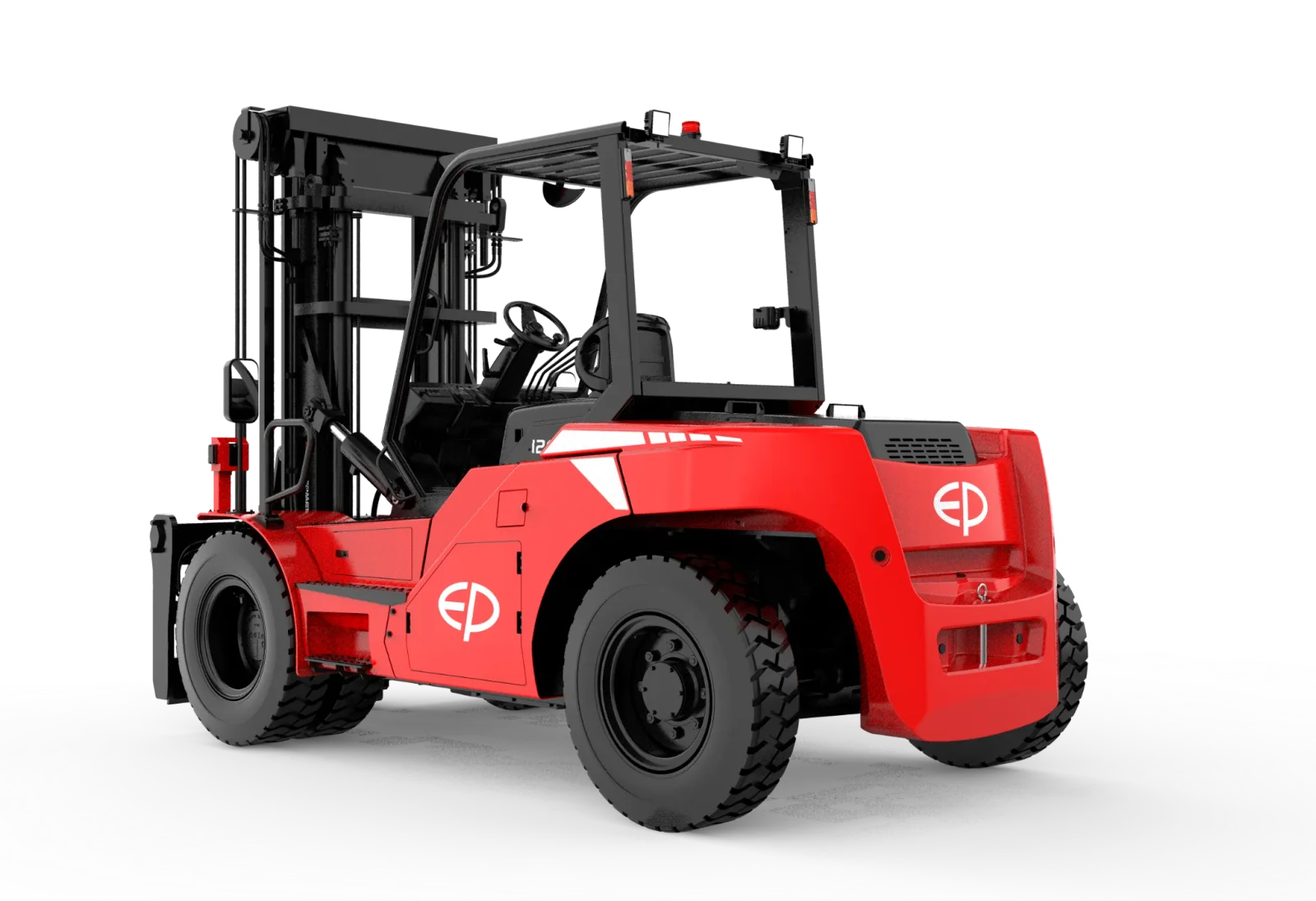

High capacity electric counterbalanced forklift
EFL1203-HV-6
- Load capacity
- 12,000 kg
- Lift heightUp to 7,000 mm with optional mast
- 3,000 mm
- Battery
- 309 V Li-ion
Overview
A high capacity electric counterbalanced forklift with a rated capacity of 12,000 kg, a lift height of 3,000 mm (up to 7,000 mm with optional mast) and a 309 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 12,000 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 7,000 mm with optional mast
- Travel speed, laden/unladen
- 20/21 km/h
- Battery
- 309 V Li-ion
- Turning radius
- 4,290 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 737 mm
- Tilt of mast/fork carriage forward/backward
- 6/12 °
- Height, mast lowered
- 3,175 mm
- Free lift
- 88 mm
- Height, mast extended
- 4,645 mm
- Fork carriage width
- 2,336 mm
- Lift speed, laden/unladen
- 0.38/0.44 m/s
- Lowering speed, laden/unladen
- 0.42/0.4 m/s
Performance
- Max. drawbar pull, laden/unladen
- /N
- Max. gradeability, laden/unladen
- 20/25 %
- Service brake
- Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 55 kW
- Lift motor rating at S3 15%
- 2 × 38 kW
- Battery voltage
- 309 V
- Battery nominal capacity K5
- 304 Ah
- Battery type
- Li-ion
- Battery weight
- 860 kg
- Energy consumption according to DIN EN 16796
- / ¹⁾kWh/h
- Type of drive unit
- PMSM
- Charger output current
- / A
Dimensions and weight
- Wheelbase
- 3,000 mm
- Service weight
- 15,500 kg
- Axle loading, laden front/rear
- 24,760/2,740 kg
- Axle loading, unladen front/rear
- 7,410/8,090 kg
- Tread width, front
- 1,748 mm
- Tread width, rear
- 1,950 mm
- Height of overhead guard (cabin)
- 2,755 mm
- Seat height relating to SIP/stand height
- 1,700 mm
- Coupling height
- 490 mm
- Overall length
- 5,832 mm
- Length to face of forks
- 4,462 mm
- Overall width
- 2,350 mm
- Fork dimensions
- 88 × 175 × 1,370 mm
- Ground clearance, laden, below mast
- 240 mm
- Ground clearance, centre of wheelbase
- 260 mm
- Aisle width for pallets 1000×1200 crossways
- 6,597 mm
- Aisle width for pallets 800 × 1200 lengthways
- 6,597 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 10.00-20-18PRmm
- Tyre size, rear
- 10.00-20-18PRmm
- Wheels, number front/rear (x=drive wheels)
- 4x/2
General
- Drive
- Electric
- Operator type
- Seated
- Turnover output according to VDI 2198
- /t/h
- Turnover efficiency according to VDI 2198
- /t/kWh
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- / dB(A)
