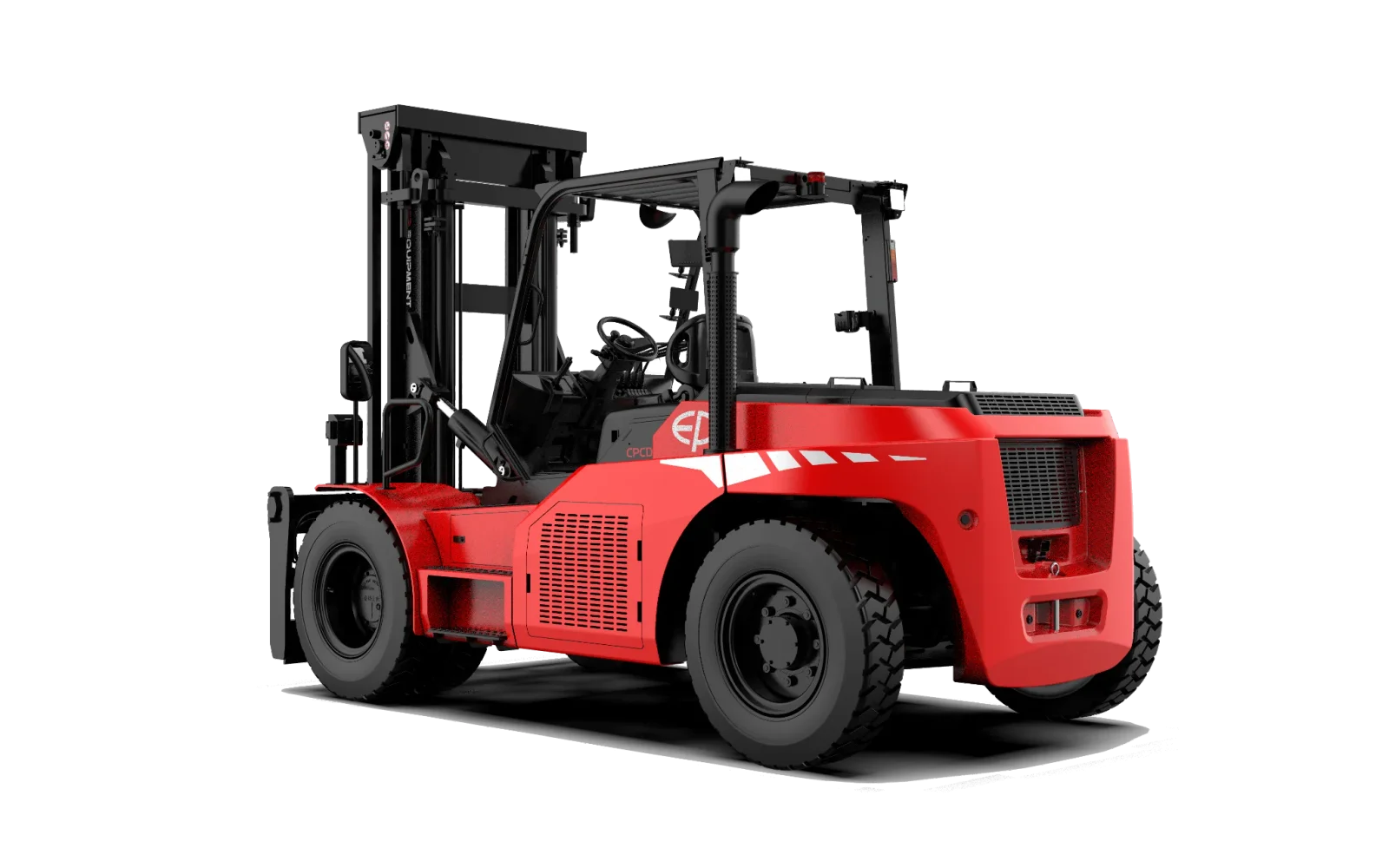

Internal combustion counterbalanced forklift
CPCD120T9
- Load capacity
- 12,000 kg
- Lift heightUp to 7,000 mm with optional mast
- 3,000 mm
- Drive
- Diesel
Overview
An internal combustion counterbalanced forklift with a rated capacity of 12,000 kg, a lift height of 3,000 mm (up to 7,000 mm with optional mast) and a diesel engine.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 12,000 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 7,000 mm with optional mast
- Travel speed, laden/unladen
- 29/33.5 km/h
- Drive
- Diesel
- Turning radius
- 4,240 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 737 mm
- Tilt of mast/fork carriage forward/backward
- 6/12 °
- Height, mast lowered
- 3,175 mm
- Free lift
- 88 mm
- Height, mast extended
- 4,645 mm
- Fork carriage width
- 2,336 mm
- Lift speed, laden/unladen
- 0.39/0.43 m/s
- Lowering speed, laden/unladen
- 0.5/0.43 m/s
- Fuel tank capacity
- 200L
Performance
- Max. drawbar pull, laden/unladen
- 88900/NAN
- Max. gradeability, laden/unladen
- 20/NA %
- Service brake
- Hydraulic - foot pedaltype
- Parking brake
- Mechanical, lever type
- Max. torque/Speed
- 720/1500Nm/rpm
Battery and drive
- Drive motor rating S2 60 min
- Cummins QSB5.9 kW
- Lift motor rating at S3 15%
- 120/2,200 kW
- Cylinder count/Displacement
- 6/5.9/L
Dimensions and weight
- Wheelbase
- 2,950 mm
- Service weight
- 14,895 kg
- Axle loading, laden front/rear
- 23,976/2,919 kg
- Axle loading, unladen front/rear
- 6,941/7,954 kg
- Tread width, front
- 1,748 mm
- Tread width, rear
- 1,950 mm
- Height of overhead guard (cabin)
- 2,655 mm
- Seat height relating to SIP/stand height
- 1,598 mm
- Coupling height
- 585 mm
- Overall length
- 5,777 mm
- Length to face of forks
- 4,407 mm
- Overall width
- 2,350 mm
- Fork dimensions
- 88/175/1,370 mm
- Ground clearance, laden, below mast
- 260 mm
- Ground clearance, centre of wheelbase
- 300 mm
- Aisle width for pallets 1000×1200 crossways
- 6,177 mm
- Aisle width for pallets 800 × 1200 lengthways
- 6,377 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 10.00-20-16PRmm
- Tyre size, rear
- 10.00-20-16PRmm
- Wheels, number front/rear (x=drive wheels)
- 4X/2
General
- Drive
- Diesel
- Operator type
- Seated
- Transmission type
- Electro-hydraulic
- Gear position, front/rear
- 2/2
