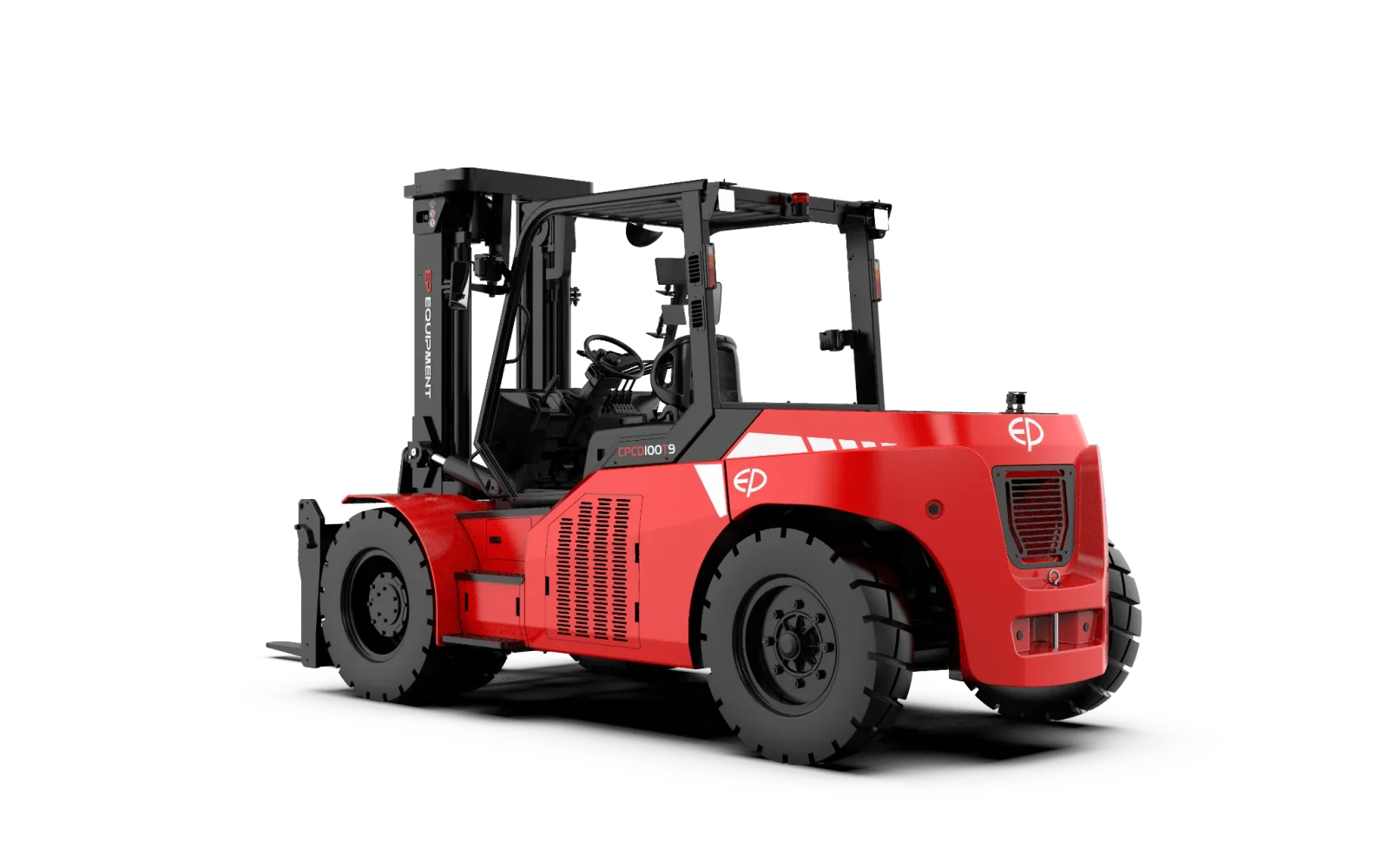

Internal combustion counterbalanced forklift
CPCD100T9 (Cummins QSB3.9)
- Load capacity
- 10,000 kg
- Lift heightUp to 7,000 mm with optional mast
- 3,000 mm
- Drive
- Diesel
Overview
An internal combustion counterbalanced forklift with a rated capacity of 10,000 kg, a lift height of 3,000 mm (up to 7,000 mm with optional mast) and a diesel engine.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 10,000 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 7,000 mm with optional mast
- Travel speed, laden/unladen
- 28/31 km/h
- Drive
- Diesel
- Turning radius
- 3,940 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 713 mm
- Tilt of mast/fork carriage forward/backward
- 6/12 °
- Height, mast lowered
- 2,850 mm
- Free lift
- 200 mm
- Height, mast extended
- 4,310 mm
- Fork carriage width
- 2,130 mm
- Lift speed, laden/unladen
- 0.41/0.43 m/s
- Lowering speed, laden/unladen
- 0.46/0.40 m/s
- Fuel tank capacity
- 160L
Performance
- Max. drawbar pull, laden/unladen
- 80000/NAN
- Max. gradeability, laden/unladen
- 20/NA %
- Service brake
- Hydraulic - foot pedaltype
- Parking brake
- Mechanical, lever type
- Max. torque/Speed
- 480/1350Nm/rpm
Battery and drive
- Drive motor rating S2 60 min
- Cummins QSB3.9 kW
- Lift motor rating at S3 15%
- 93/2,200 kW
- Cylinder count/Displacement
- 4/3.9/L
Dimensions and weight
- Wheelbase
- 2,800 mm
- Service weight
- 12,900 kg
- Axle loading, laden front/rear
- 20,719/2,181 kg
- Axle loading, unladen front/rear
- 6,029/6,871 kg
- Tread width, front
- 1,600 mm
- Tread width, rear
- 1,700 mm
- Height of overhead guard (cabin)
- 2,570 mm
- Seat height relating to SIP/stand height
- 1,565 mm
- Coupling height
- 525 mm
- Overall length
- 5,770 mm
- Length to face of forks
- 4,250 mm
- Overall width
- 2,200 mm
- Fork dimensions
- 80/160/1,520 mm
- Ground clearance, laden, below mast
- 246 mm
- Ground clearance, centre of wheelbase
- 300 mm
- Aisle width for pallets 1000×1200 crossways
- 5,853 mm
- Aisle width for pallets 800 × 1200 lengthways
- 6,053 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 9.00-20-14PRmm
- Tyre size, rear
- 9.00-20-14PRmm
- Wheels, number front/rear (x=drive wheels)
- 4X/2
General
- Drive
- Diesel
- Operator type
- Seated
- Gear position, front/rear
- 2/2
- Transmission type
- Electro-hydraulic
