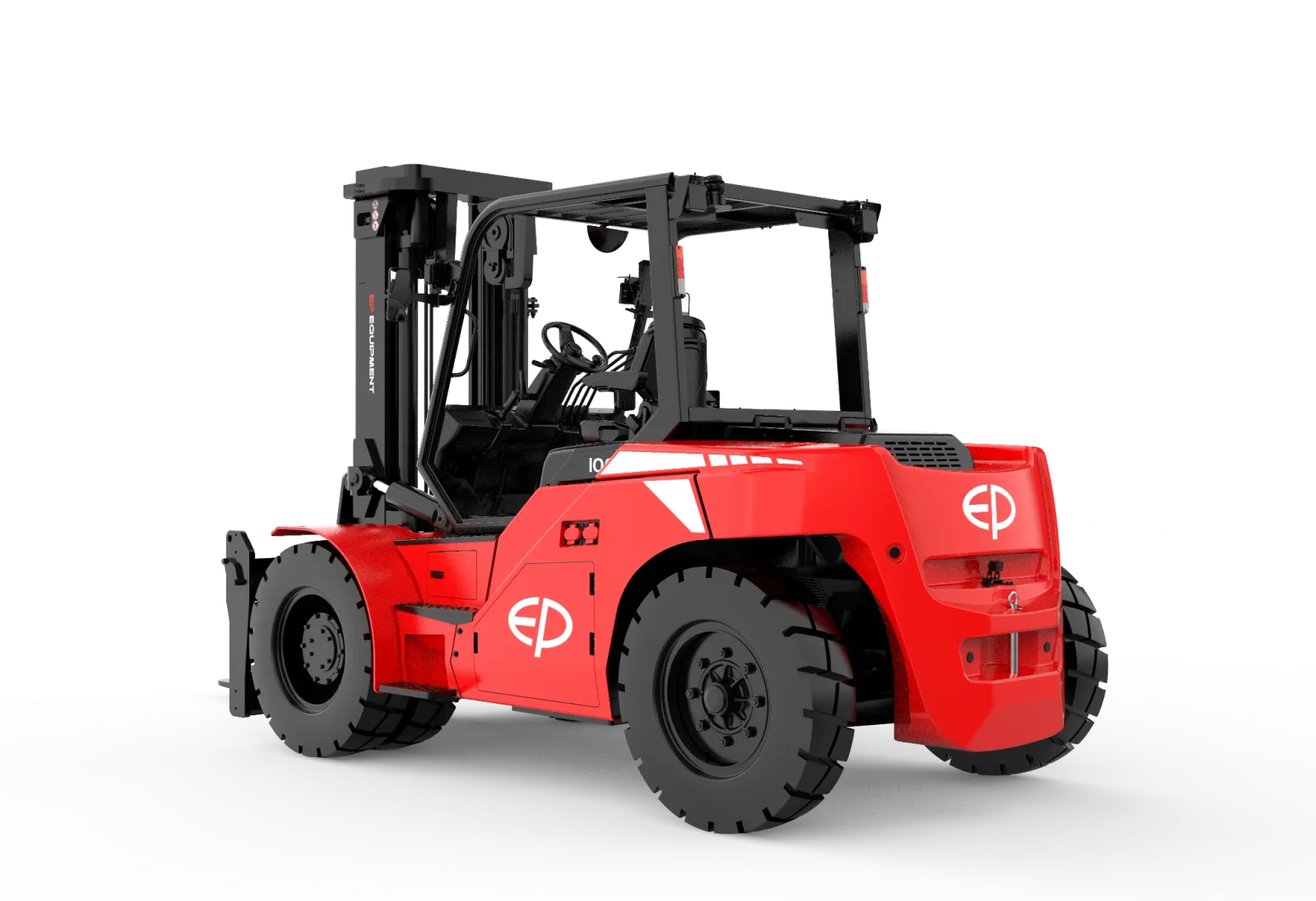

Electric counterbalanced forklift
EFL1004-6
- Load capacity
- 10,000 kg
- Lift heightUp to 7,000 mm with optional mast
- 3,000 mm
- Battery
- 96 V
Overview
An electric counterbalanced forklift with a rated capacity of 10,000 kg, a lift height of 3,000 mm (up to 7,000 mm with optional mast) and a 96 V battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 10,000 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 7,000 mm with optional mast
- Travel speed, laden/unladen
- 16.5/17 km/h
- Battery
- 96 V
- Turning radius
- 3,605 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 713 mm
- Tilt of mast/fork carriage forward/backward
- 6/12 °
- Height, mast lowered
- 2,850 mm
- Free lift
- 200 mm
- Height, mast extended
- 4,310 mm
- Fork carriage width
- 2,130 mm
- Lift speed, laden/unladen
- 0.35/0.39 m/s
- Lowering speed, laden/unladen
- 0.37/0.42 m/s
Performance
- Max. drawbar pull, laden/unladen
- /N
- Max. gradeability, laden/unladen
- 15/20 %
- Service brake
- Mechanical/Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 35 kW
- Lift motor rating at S3 15%
- 58 kW
- Battery voltage/nominal capacity
- 96V/920AhV/Ah
- Battery weight
- 800 kg
- Type of drive unit
- PMSM
Dimensions and weight
- Wheelbase
- 2,500 mm
- Service weight
- 14,080 kg
- Axle loading, laden front/rear
- 20,970/3,110 kg
- Axle loading, unladen front/rear
- 6,185/7,892 kg
- Tread width, front
- 1,600 mm
- Tread width, rear
- 1,700 mm
- Height of overhead guard (cabin)
- 2,560 mm
- Seat height relating to SIP/stand height
- 1,550 mm
- Coupling height
- 630 mm
- Overall length
- 5,480 mm
- Length to face of forks
- 3,960 mm
- Overall width
- 2,200 mm
- Fork dimensions
- 80 × 160 × 1,520 mm
- Ground clearance, laden, below mast
- 250 mm
- Ground clearance, centre of wheelbase
- 305/295 mm
- Aisle width for pallets 1000×1200 crossways
- 6,038 mm
- Aisle width for pallets 800 × 1200 lengthways
- 6,038 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 9.00-20-14PRmm
- Tyre size, rear
- 9.00-20-14PRmm
- Wheels, number front/rear (x=drive wheels)
- 4x/2
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- / dB(A)
