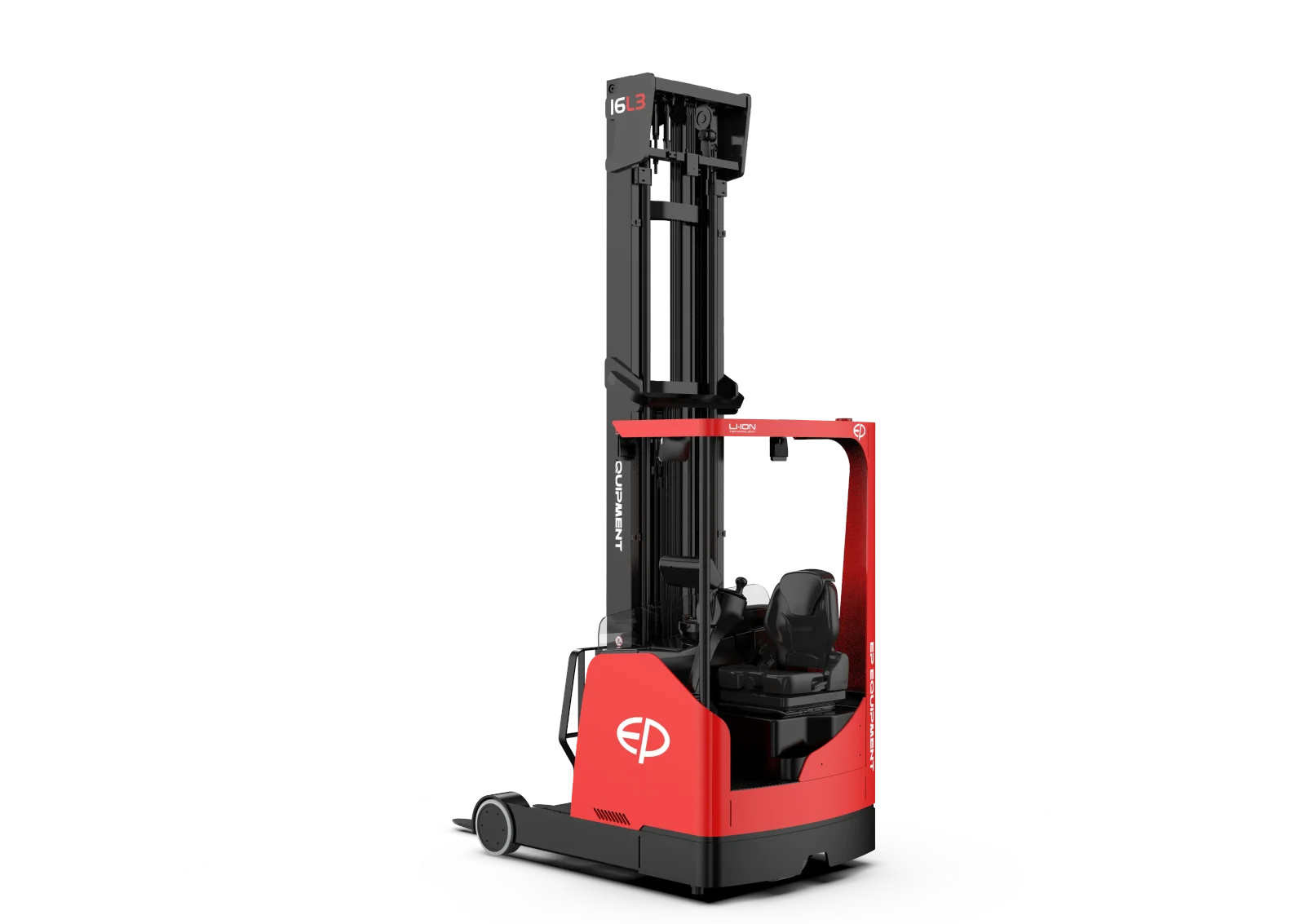

Li-ion 80V reach truck
CQD16-PRO
- Load capacity
- 1,600 kg
- Lift height
- 9,655 mm
- Battery
- 80 V Li-ion
Overview
A Li-ion 80V reach truck with a rated capacity of 1,600 kg, a lift height of 9,655 mm and an 80 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,600 kg
- Lift height
- 9,655 mm
- Travel speed, laden/unladen
- 11/11 km/h
- Battery
- 80 V Li-ion
- Turning radius
- 1,680 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 390 mm
- Tilt of mast/fork carriage forward/backward
- 2/4 °
- Height, mast lowered
- 3,930 mm
- Free lift
- 2,877 mm
- Height, mast extended
- 10,720 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 990 mm
- Lift speed, laden/unladen
- 0.42/0.6 m/s
- Lowering speed, laden/unladen
- 0.55/0.5 m/s
Performance
- Max. gradeability, laden/unladen
- 10/15 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 8 kW
- Lift motor rating at S3 15%
- 22 kW
- Battery voltage
- 80 V
- Battery nominal capacity K5
- 205 Ah
- Battery type
- Li-ion
- Battery weight
- 180 kg
- Type of drive unit
- AC
- Charger output current
- 100 A
Dimensions and weight
- Wheelbase
- 1,415 mm
- Service weight
- 4,075 kg
- Axle loading, laden front/rear
- 1,045/4,775 kg
- Axle loading, unladen front/rear
- 2,580/1,500 kg
- Tread width, front
- - mm
- Tread width, rear
- 1,168 mm
- Height of overhead guard (cabin)
- 2,200 mm
- Seat height relating to SIP/stand height
- 1,000 mm
- Height of wheel arms
- 308mm
- Overall length
- 2,465 mm
- Length to face of forks
- 1,265 mm
- Overall width
- 1,250/1,270 mm
- Fork dimensions
- 40/100/1,150 mm
- Ground clearance, laden, below mast
- 75 mm
- Ground clearance, centre of wheelbase
- 70 mm
- Aisle width for pallets 1000×1200 crossways
- 2,715 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,760 mm
- Length across wheel arms
- 1,820 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Φ343 × 140mm
- Tyre size, rear
- Φ285 × 100mm
- Additional wheels (castor wheels)
- -mm
- Wheels, number front/rear (x=drive wheels)
- 1x/2
- Distance between wheel arms/loading surfaces
- 917
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 70 dB(A)
