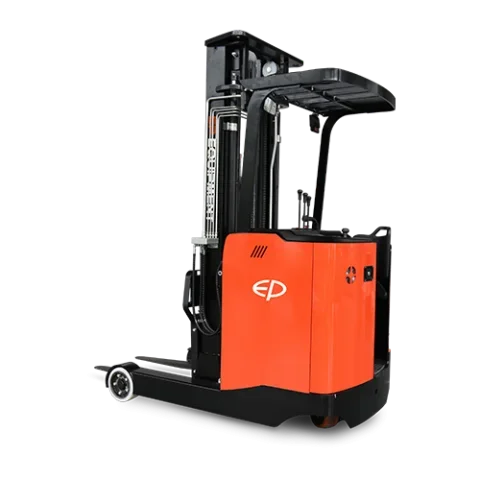

Electric stand-up reach truck
CQD15S
- Load capacity
- 1,500 kg
- Lift heightUp to 7,500 mm with optional mast
- 3,000 mm
- Battery
- 48 V Li-ion
Overview
An electric stand-up reach truck with a rated capacity of 1,500 kg, a lift height of 3,000 mm (up to 7,500 mm with optional mast) and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 7,500 mm with optional mast
- Travel speed, laden/unladen
- 8.5/9 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,765 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 500 mm
- Tilt of mast/fork carriage forward/backward
- 2/4 °
- Height, mast lowered
- 2,050 mm
- Height, mast extended
- 3,860 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 830 mm
- Lift speed, laden/unladen
- 0.28/0.44 m/s
- Lowering speed, laden/unladen
- 0.52/0.48 m/s
Performance
- Max. gradeability, laden/unladen
- 8/10 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 4 kW
- Lift motor rating at S3 15%
- 8.2 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 420 Ah
- Battery type
- Li-Ion/AGM
- Battery weight
- 739 kg
- Energy consumption according to DIN EN 16796
- 0.28kWh/h
- Type of drive unit
- AC
- Charger output current
- 60 A
Dimensions and weight
- Wheelbase
- 1,504 mm
- Service weight
- 2,370 kg
- Axle loading, laden front/rear
- 3,445/490 kg
- Axle loading, unladen front/rear
- 1,621/846 kg
- Tread width, front
- 700 mm
- Tread width, rear
- 974 mm
- Height of overhead guard (cabin)
- 2,255 mm
- Seat height relating to SIP/stand height
- 335 mm
- Height of wheel arms
- 280mm
- Overall length
- 2,335 mm
- Length to face of forks
- 1,265 mm
- Overall width
- 1,090 mm
- Fork dimensions
- 40/100/1,070 mm
- Ground clearance, laden, below mast
- 70 mm
- Ground clearance, centre of wheelbase
- 70 mm
- Aisle width for pallets 1000×1200 crossways
- 2,745 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,770 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Φ260 × 105mm
- Tyre size, rear
- Φ254 × 114mm
- Additional wheels (castor wheels)
- Φ178 × 73mm
- Wheels, number front/rear (x=drive wheels)
- 1x/2
- Distance between wheel arms/loading surfaces
- 750
General
- Drive
- Electric
- Operator type
- Standing
- Distance between fork-arms
- 200-620 mm
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 75 dB(A)
