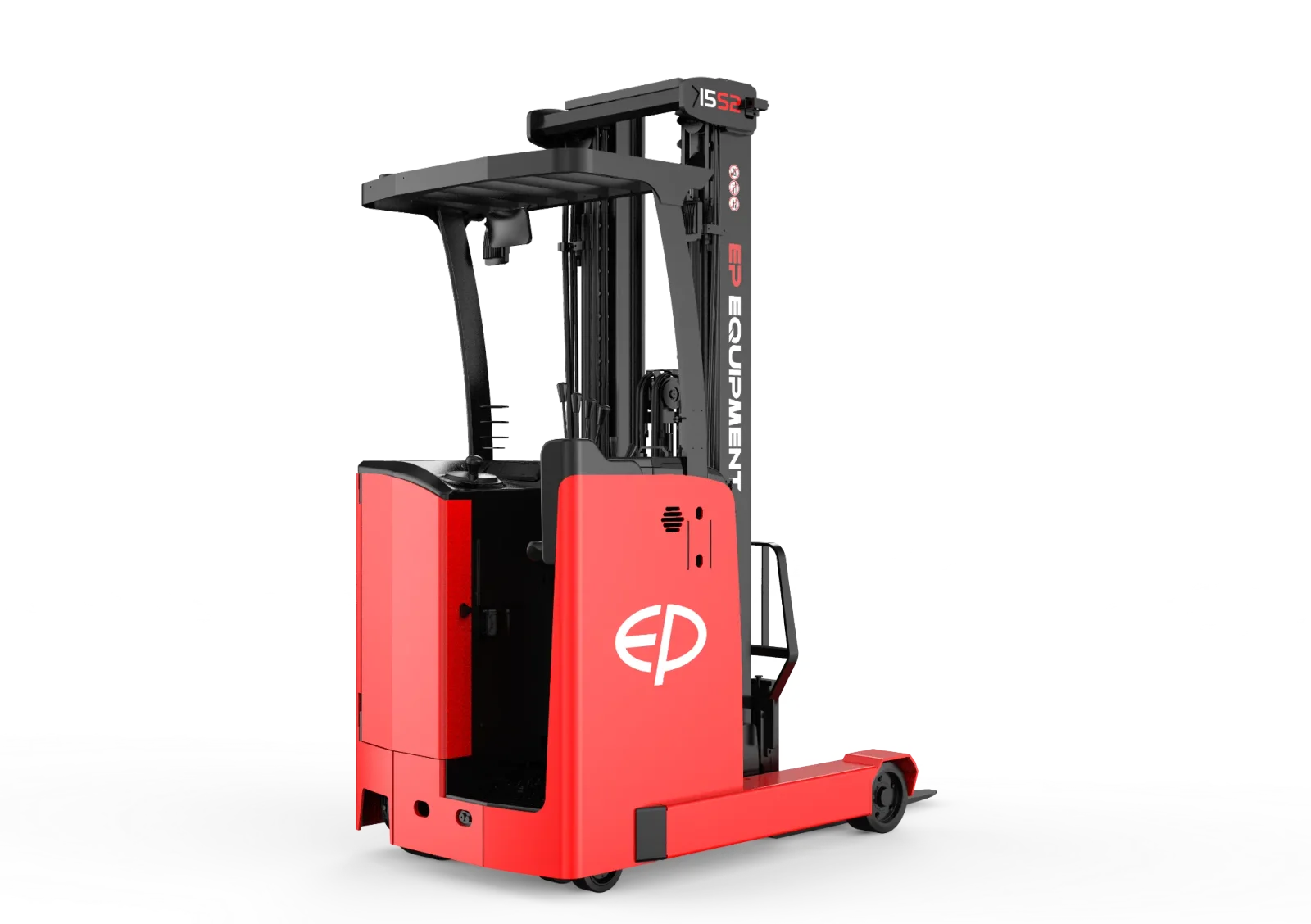

Electric stand-on reach truck
CQD15S2
- Load capacity
- 1,500 kg
- Lift heightUp to 6,500 mm with optional mast
- 4,500 mm
- Battery
- 48 V lead-acid
Overview
An electric stand-on reach truck with a rated capacity of 1,500 kg, a lift height of 4,500 mm (up to 6,500 mm with optional mast) and a 48 V lead-acid battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height (standard mast)
- 4,500 mm
- Max. lift height
- 6,500 mm with optional mast
- Travel speed, laden/unladen
- 9.5/10.5 km/h
- Battery
- 48 V lead-acid
- Turning radius
- 1,597 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 330 mm
- Tilt of mast/fork carriage forward/backward
- 2/4 °
- Height, mast lowered
- 2,065 mm
- Free lift
- 1,080 mm
- Height, mast extended
- 5,530 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 870 mm
- Lift speed, laden/unladen
- 0.30/0.50 m/s
- Lowering speed, laden/unladen
- 0.54/0.50 m/s
Performance
- Reaching speed, laden /unladen
- 0.2m/s
- Max. gradeability, laden/unladen
- 10/15 %
- Service brake
- Mechanical
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 4.3 kW
- Lift motor rating at S3 15%
- 9 kW
- Battery voltage/nominal capacity
- 48/300V/Ah
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 300 Ah
- Battery type
- Lead Acid
- Battery weight
- 495 kg
- Type of drive unit
- AC
- Charger output current
- 40 A
Dimensions and weight
- Wheelbase
- 1,345 mm
- Service weight
- 2,720 kg
- Axle loading, unladen front/rear
- 1,500/1130kg
- Axle loading, fork advanced, laden front/rear
- 479/3821kg
- Axle loading, fork retracted, laden front/rear
- 1,420/2879kg
- Tread width_front
- 635mm
- Tread width_rear
- 1055mm
- Height of overhead guard (cabin)
- 2,240 mm
- Seat height relating to SIP/stand height
- 275 mm
- Height of wheel arms
- 280mm
- Overall length
- 2,055 mm
- Length to face of forks
- 1,245 mm
- Overall width
- 1,090/1,170 mm
- Fork dimensions
- 40 × 100 × 920 mm
- Ground clearance, laden, below mast
- 80 mm
- Ground clearance, centre of wheelbase
- 80 mm
- Aisle width for pallets 1000×1200 crossways
- 2,700 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,750 mm
- Length across wheel arms
- 1,722 mm
Wheels and tyres
- Tyres
- Polyurethane/Solidrubber
- Tyre size, front
- 330 × 140mm
- Tyre size, rear
- 254 × 114mm
- Additional wheels (castor wheels)
- 178 × 73mm
- Wheels, number front/rear (x=drive wheels)
- 1x/2
- Distance between wheel arms/loading surfaces
- 750
General
- Drive
- Electric
- Operator type
- standing
- Distance between fork-arms
- 200-655 mm
- Reach distance
- 525mm
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 70 dB(A)
