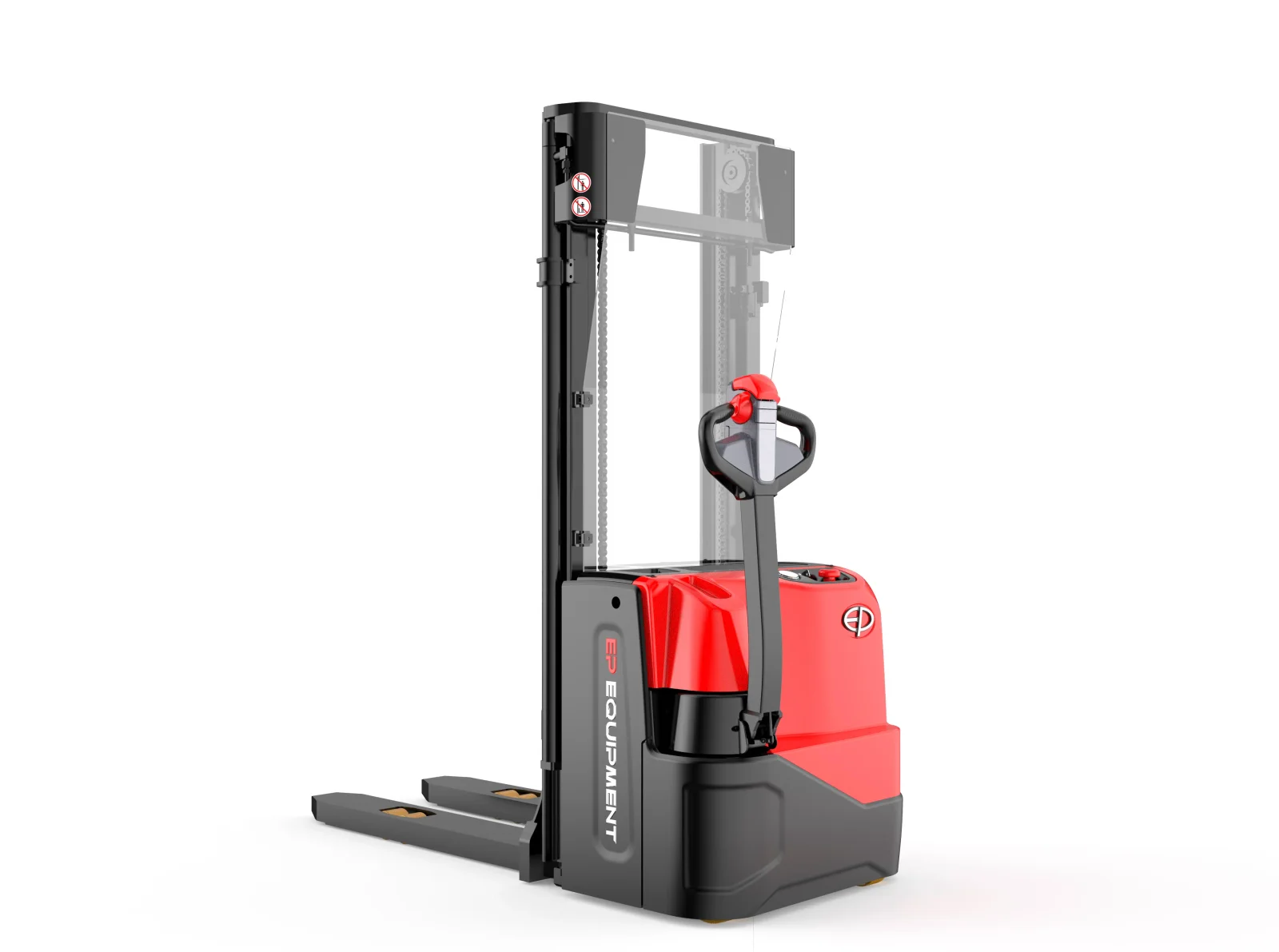

Heavy duty Li-ion stacker
WSA161
- Load capacity
- 1,600 kg
- Lift heightUp to 5,500 mm with optional mast
- 2,915 mm
- Battery
- 24 V Li-ion
Overview
A heavy duty Li-ion stacker with a rated capacity of 1,600 kg, a lift height of 2,915 mm (up to 5,500 mm with optional mast) and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,600 kg
- Lift height (standard mast)
- 2,915 mm
- Max. lift height
- 5,500 mm with optional mast
- Travel speed, laden/unladen
- 5/5.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,506 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 690 mm
- Height, mast lowered
- 2,015 mm
- Height, mast extended
- 3,495 mm
- Fork carriage width
- 750 mm
- Lift speed, laden/unladen
- 0.23/0.3 m/s
- Lowering speed, laden/unladen
- 0.4/0.36 m/s
Performance
- Height drawbar in driving position min./max.
- 715/1,200 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 4.5 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 100 Ah
- Battery type
- Li-ion
- Battery weight
- 40 kg
- Energy consumption according to DIN EN 16796
- 0.79 ¹⁾kWh/h
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,261 mm
- Service weight
- 1,070 kg
- Axle loading, laden front/rear
- 780/1,890 kg
- Axle loading, unladen front/rear
- 730/340 kg
- Tread width, front
- 538 mm
- Tread width, rear
- 406 mm
- Height, lowered
- 90 mm
- Width of loading surface
- 170
- Overall length
- 1,924 mm
- Length to face of forks
- 774 mm
- Overall width
- 810 mm
- Fork dimensions
- 65 × 170 × 1,150 mm
- Ground clearance, laden, below mast
- 25 mm
- Ground clearance, centre of wheelbase
- 25 mm
- Aisle width for pallets 1000×1200 crossways
- 2,383 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,356 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 230 × 75mm
- Tyre size, rear
- 85 × 70mm
- Additional wheels (castor wheels)
- 130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x，1/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 570 mm
- Turnover output according to VDI 2198
- 64t/h
- Turnover efficiency according to VDI 2198
- 46.24t/kWh
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
