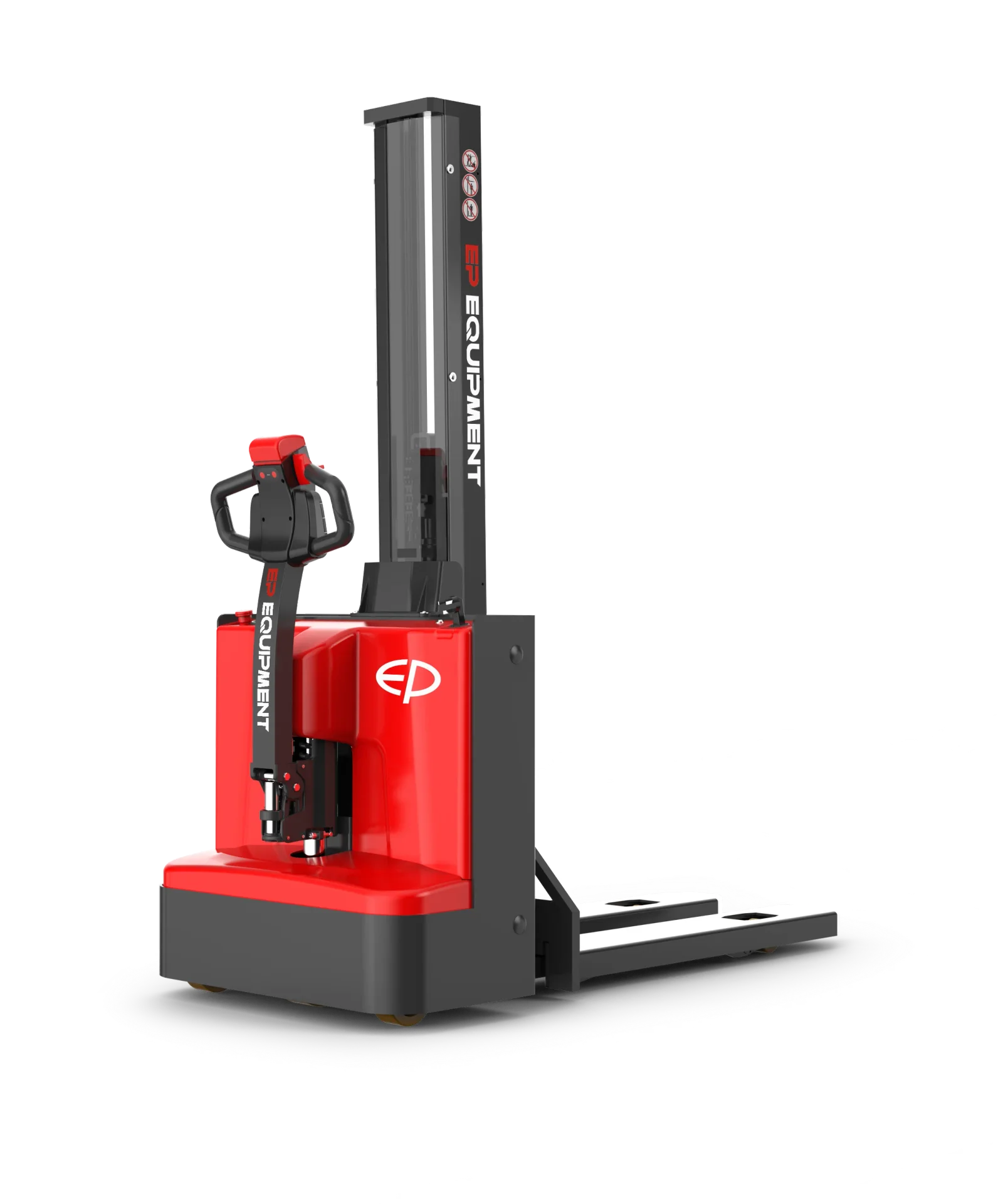

Pedestrian double-deck stacker
ESi161
- Load capacity
- 1,600 kg
- Lift heightUp to 1,608 mm with optional mast
- 1,520 mm
- Battery
- 24 V
Overview
A pedestrian double-deck stacker with a rated capacity of 1,600 kg, a lift height of 1,520 mm (up to 1,608 mm with optional mast) and a 24 V battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,600 kg
- Lift height (standard mast)
- 1,520 mm
- Max. lift height
- 1,608 mm with optional mast
- Travel speed, laden/unladen
- 4/4.5 km/h
- Battery
- 24 V
- Turning radius
- 1,473 mm
Show all specifications Hide specifications
Capacity and lifting
- Load capacity，load with mast lift
- 800kg
- Load capacity, load with support arm lift
- 1600kg
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 798 mm
- Height, mast lowered
- 1,942 mm
- Free lift
- 1,515 mm
- Height, mast extended
- 1,986 mm
- Initial lift
- 115mm
- Fork carriage width
- 680 mm
- Lift speed, laden/unladen
- 0.1/0.12 m/s
- Lowering speed, laden/unladen
- 0.1/0.07 m/s
Performance
- Height drawbar in driving position min./max.
- 800/1,190 mm
- Max. gradeability, laden/unladen
- 3/10 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.75 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 100 Ah
- Battery weight
- 28 kg
- Energy consumption according to DIN EN 16796
- 0.4kWh/h
- Type of drive unit
- DC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,265 mm
- Service weight
- 510 kg
- Axle loading, laden front/rear
- 550/1,560 kg
- Axle loading, unladen front/rear
- 375/135 kg
- Tread width, front
- 592 mm
- Tread width, rear
- 370 mm
- Height, lowered
- 91 mm
- Overall length
- 1,770 mm
- Length to face of forks
- 620 mm
- Overall width
- 800 mm
- Fork dimensions
- 55/190/1,150 mm
- Ground clearance, centre of wheelbase
- 33 mm
- Aisle width for pallets 1000×1200 crossways
- 2,306 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,240 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ø210 × 70mm
- Tyre size, rear
- Ф80 × 61mm
- Additional wheels (castor wheels)
- Ø130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1,2/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 560 mm
- Turnover output according to VDI 2198
- 22.73
- Turnover efficiency according to VDI 2198
- 63.72
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- <74 dB(A)
