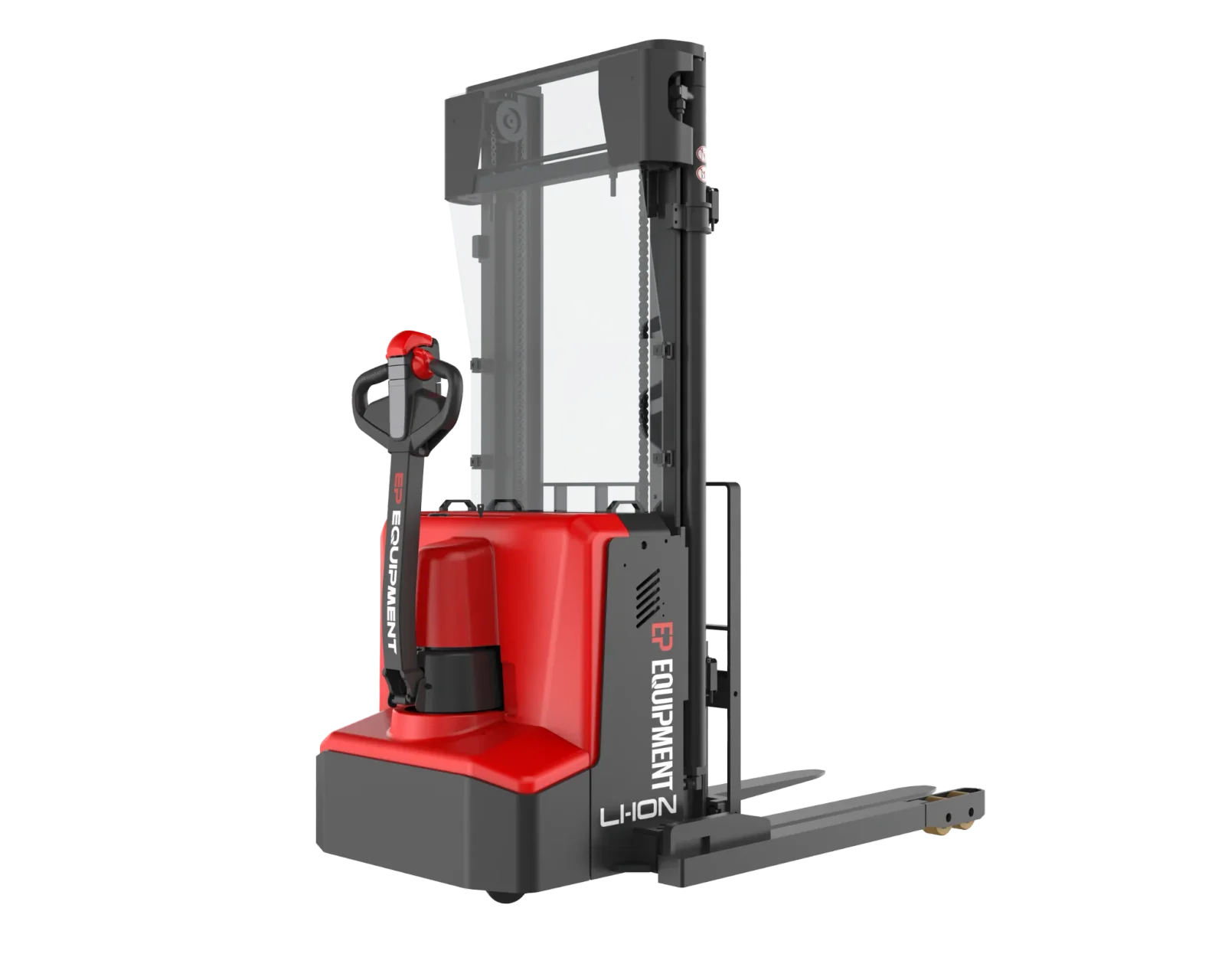

Electric pedestrian straddle stacker
WSA121-D
- Load capacity
- 1,200 kg
- Lift heightUp to 5,500 mm with optional mast
- 2,945 mm
- Battery
- 24 V Li-ion
Overview
An electric pedestrian straddle stacker with a rated capacity of 1,200 kg, a lift height of 2,945 mm (up to 5,500 mm with optional mast) and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,200 kg
- Lift height (standard mast)
- 2,945 mm
- Max. lift height
- 5,500 mm with optional mast
- Travel speed, laden/unladen
- 5/5.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,535 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 695 mm
- Height, mast lowered
- 2,025 mm
- Free lift
- \ mm
- Height, mast extended
- 3,920 mm
- Fork carriage width
- 800 mm
- Lift speed, laden/unladen
- 0.18/0.26 m/s
- Lowering speed, laden/unladen
- 0.36/0.32 m/s
Performance
- Height drawbar in driving position min./max.
- 715/1,200 mm
- Max. gradeability, laden/unladen
- 10/23 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 4.5 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 100 Ah
- Battery type
- Li-ion
- Battery weight
- 40 kg
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,340 mm
- Height of wheel arms
- 100mm
- Height, lowered
- 55 mm
- Overall length
- 1,887 mm
- Length to face of forks
- 817 mm
- Overall width
- 1,120/1,220/1,320/1,420 mm
- Fork dimensions
- 100 × 40 × 1,070 mm
- Ground clearance, laden, below mast
- 35 mm
- Ground clearance, centre of wheelbase
- 35 mm
- Aisle width for pallets 1000×1200 crossways
- 2,455 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,455 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 230 × 75mm
- Tyre size, rear
- 101.6 × 50.6mm
- Additional wheels (castor wheels)
- 102 × 63.5mm
- Wheels, number front/rear (x=drive wheels)
- 1x，2/4
- Distance between wheel arms/loading surfaces
- 970/1,070/1,170/1,270
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 200-760 mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
Bought in Aruba. Supported in Aruba.
With ProLift you deal with one local partner, from the first question to service years later.
-
Ready to work
New machines are delivered fully assembled, inspected and ready to work.
-
Maintenance and repairs
Preventive maintenance and repairs to keep your machine running.
-
Parts
Support and parts arranged directly for Aruba, to keep downtime short.
-
One point of contact
One dedicated partner from the first quote to final delivery and beyond.
Interested in the WSA121-D?
Talk to ProLift. We'll help you choose the right configuration for your operation.
