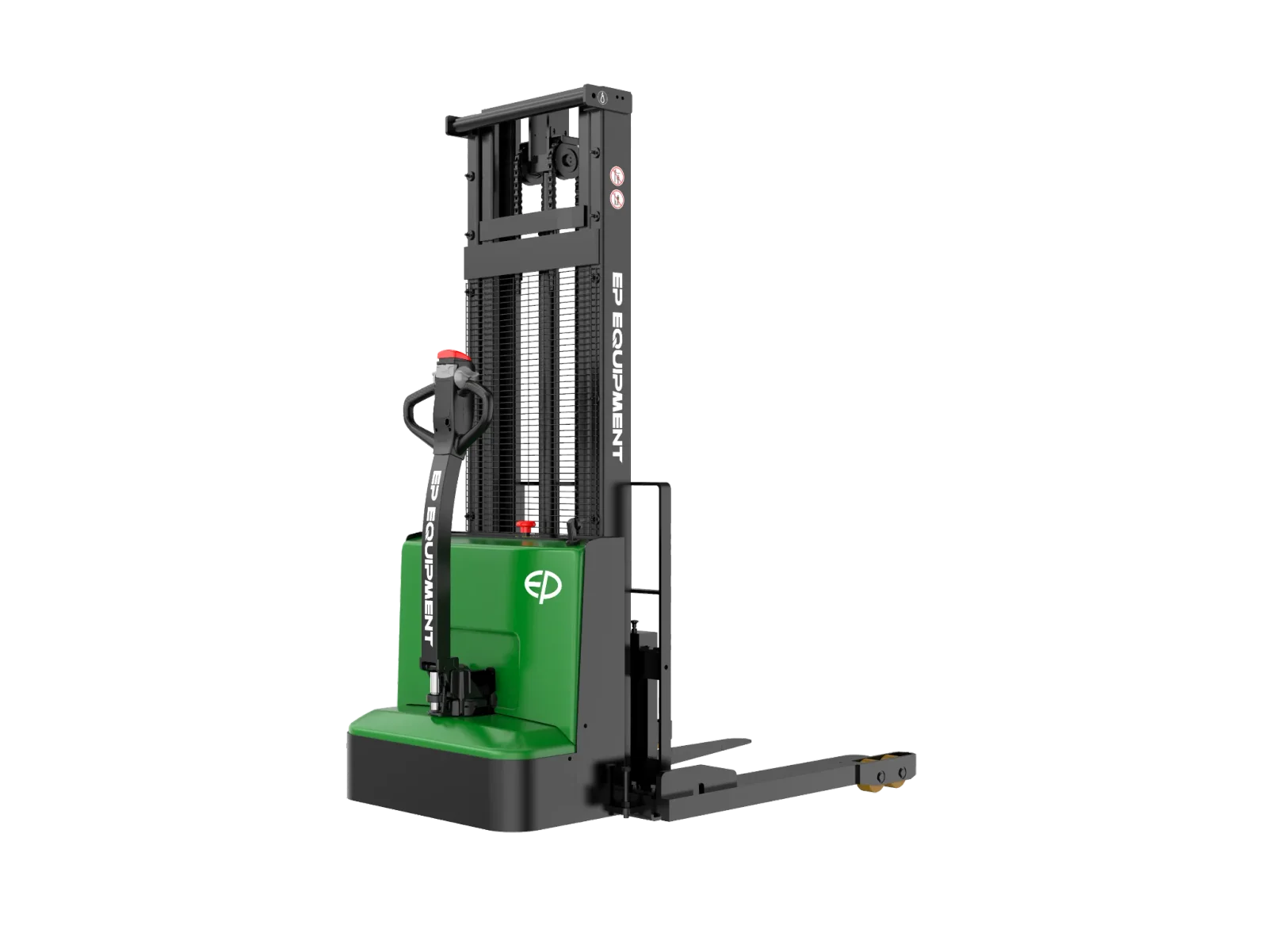

Electric pedestrian straddle stacker
DS4-D
- Load capacity
- 1,200 kg
- Lift height
- 3,890 mm
- Battery
- 24 V AGM
Overview
An electric pedestrian straddle stacker with a rated capacity of 1,200 kg, a lift height of 3,890 mm and a 24 V AGM battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,200 kg
- Lift height
- 3,890 mm
- Travel speed, laden/unladen
- 4.0/4.5 km/h
- Battery
- 24 V AGM
- Turning radius
- 1,450 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 782 mm
- Height, mast lowered
- 2,545 mm
- Free lift
- - mm
- Height, mast extended
- 4,795 mm
- Fork carriage width
- 826 mm
- Lift speed, laden/unladen
- 0.085/0.13 m/s
- Lowering speed, laden/unladen
- 0.105/0.085 m/s
Performance
- Height drawbar in driving position min./max.
- 641/1,210 mm
- Max. gradeability, laden/unladen
- 3/10 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.75 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage/nominal capacity
- 24/80V/Ah
- Battery type
- AGM
- Battery weight
- 38 kg
- Type of drive unit
- DC
- Charger output current
- 10 A
Dimensions and weight
- Wheelbase
- 1,244 mm
- Service weight
- 682 kg
- Axle loading, laden front/rear
- 589/1,393 kg
- Axle loading, unladen front/rear
- 203/475 kg
- Tread width, rear
- 1,070/1,146/1,222/1,298 mm
- Height of wheel arms
- 100mm
- Height, lowered
- 63 mm
- Overall length
- 1,685 mm
- Length to face of forks
- 633 mm
- Overall width
- 1,149/1,225/1,301/1,377 mm
- Fork dimensions
- 40/100/1,070 mm
- Ground clearance, laden, below mast
- 30 mm
- Ground clearance, centre of wheelbase
- 40 mm
- Aisle width for pallets 1000×1200 crossways
- 2,290 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,232 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ø190 × 55mm
- Tyre size, rear
- Ф102 × 50mm
- Additional wheels (castor wheels)
- -mm
- Wheels, number front/rear (x=drive wheels)
- 1x，0/4
- Distance between wheel arms/loading surfaces
- 991/1,067/1,143/1,219
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 200~780 mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
