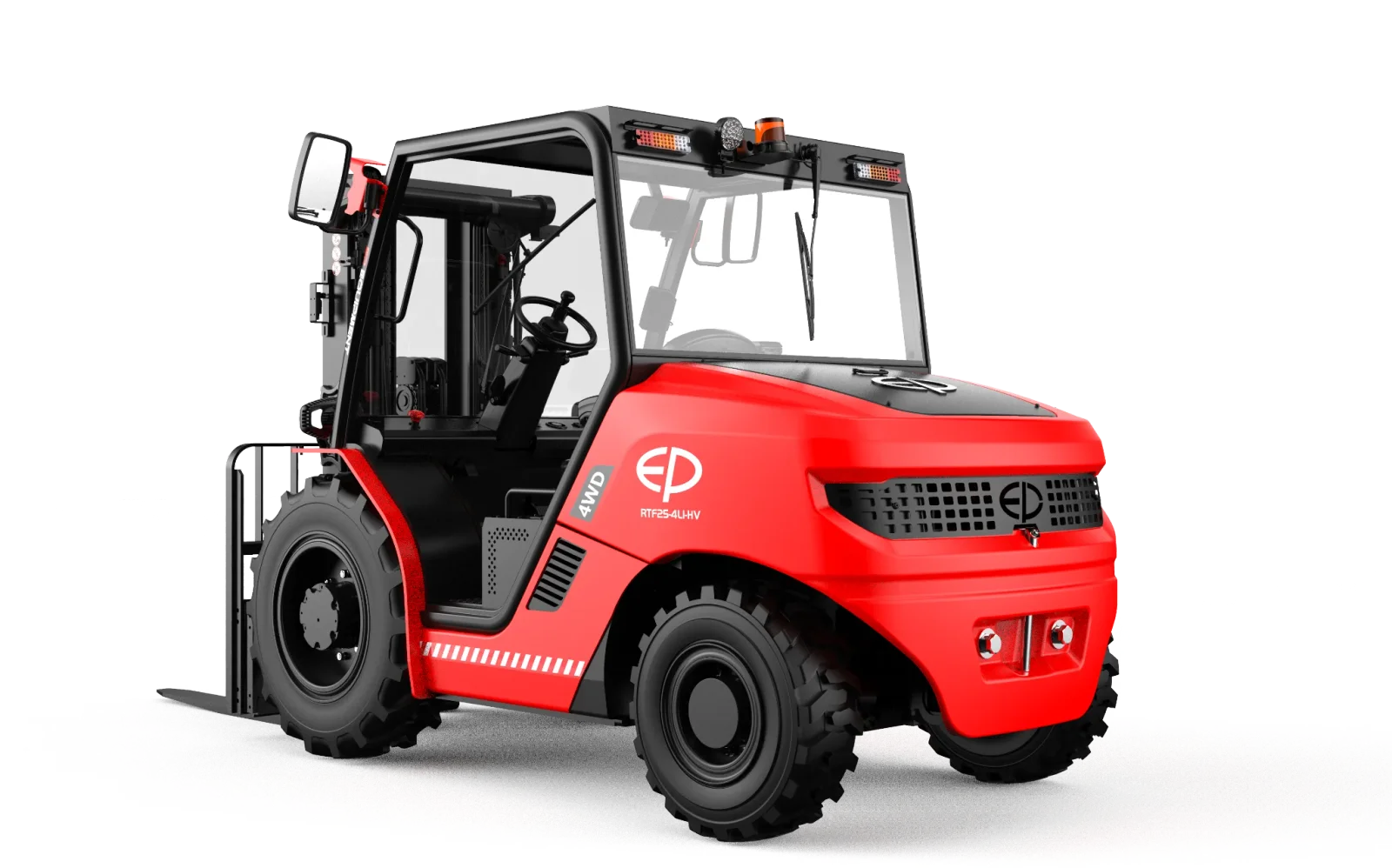

High-voltage lithium 4WD rough terrain forklift
RTF25-4L1-HV
- Load capacity
- 2,500 kg
- Lift heightUp to 4,800 mm with optional mast
- 3,000 mm
- Battery
- 309 V Li-ion
Overview
A high-voltage lithium 4WD rough terrain forklift with a rated capacity of 2,500 kg, a lift height of 3,000 mm (up to 4,800 mm with optional mast) and a 309 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 4,800 mm with optional mast
- Travel speed, laden/unladen
- 20/20 km/h
- Battery
- 309 V Li-ion
- Turning radius
- 3,118 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 625 mm
- Tilt of mast/fork carriage forward/backward
- 10/12 °
- Height, mast lowered
- 2,179 mm
- Free lift
- 100 mm
- Height, mast extended
- 4,035 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 1,308 mm
- Lift speed, laden/unladen
- 0.65/0.66 m/s
- Lowering speed, laden/unladen
- 0.6/0.5 m/s
Performance
- Max. drawbar pull, laden/unladen
- 54561N
- Max. gradeability, laden/unladen
- 45/50 %
- Service brake
- Mechanical/Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 30(F)/12.5(R) kW
- Lift motor rating at S3 15%
- 22 kW
- Battery voltage/nominal capacity
- 309/150V/Ah
- Battery type
- Li-ion
- Battery weight
- 500 kg
- Type of drive unit
- PMSM
Dimensions and weight
- Wheelbase
- 1,800 mm
- Service weight
- 5178/（5258） kg
- Axle loading, laden front/rear
- 6441/1237（6491/1267） kg
- Axle loading, unladen front/rear
- 2332/2846（2372/2886） kg
- Tread width, front
- 1,161 mm
- Tread width, rear
- 1,195 mm
- Height of overhead guard (cabin)
- 2,000/(2,150) mm
- Seat height relating to SIP/stand height
- 945 mm
- Coupling height
- 455 mm
- Overall length
- 4,028 mm
- Length to face of forks
- 2,898 mm
- Overall width
- 1,450 mm
- Fork dimensions
- 40 × 122 × 1,070 mm
- Ground clearance, laden, below mast
- 260 mm
- Ground clearance, centre of wheelbase
- 258 mm
- Aisle width for pallets 1000×1200 crossways
- 4,843 mm
- Aisle width for pallets 800 × 1200 lengthways
- 5,043 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 280/80R20mm
- Tyre size, rear
- 27 × 10-12mm
- Wheels, number front/rear (x=drive wheels)
- 2X/2X
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 70 dB(A)
