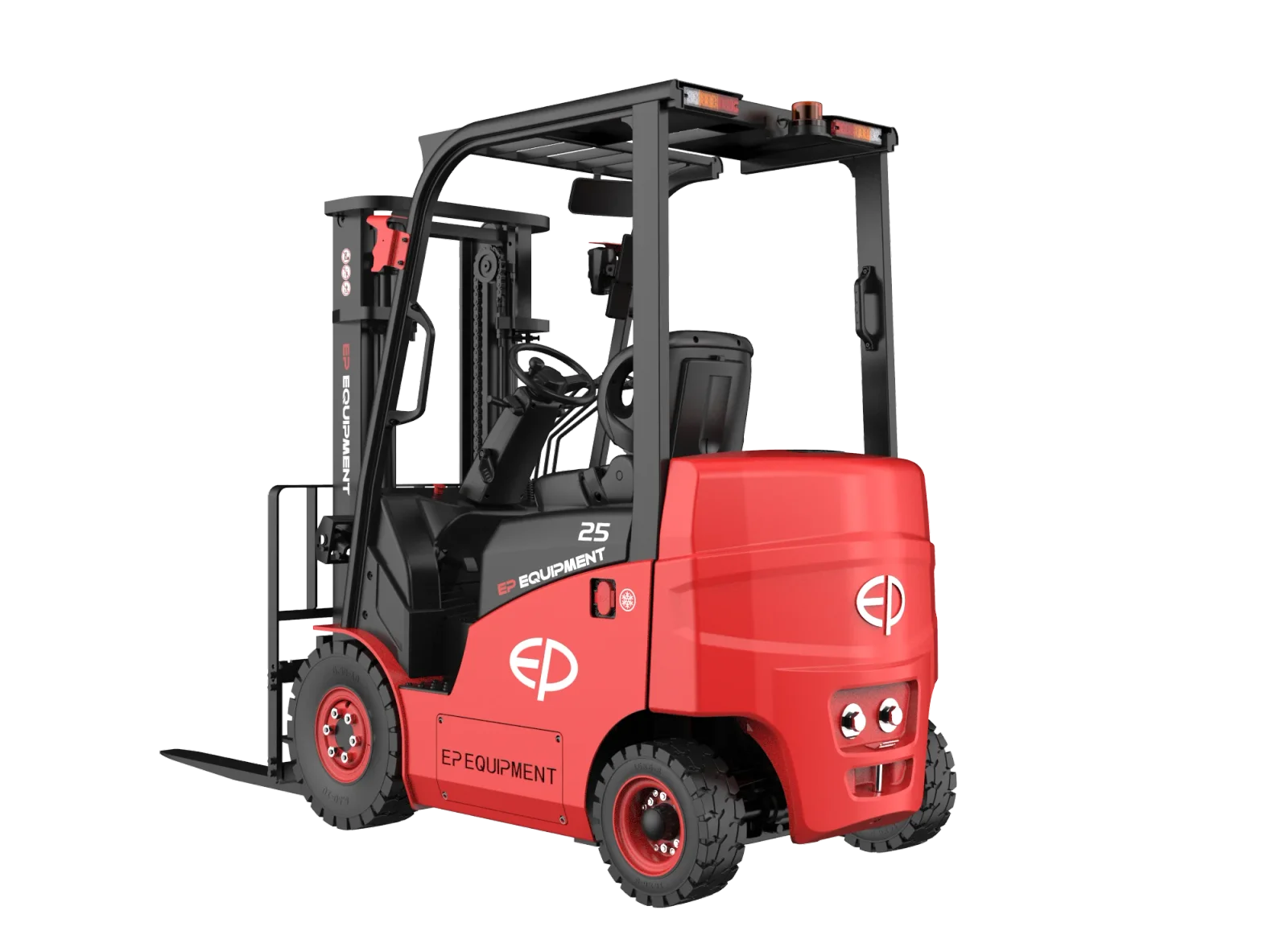

4-wheel electric cold storage forklift
CPD25FC
- Load capacity
- 2,500 kg
- Lift heightUp to 6,000 mm with optional mast
- 3,000 mm
- Battery
- 80 V Li-ion
Overview
A 4-wheel electric cold storage forklift with a rated capacity of 2,500 kg, a lift height of 3,000 mm (up to 6,000 mm with optional mast) and an 80 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 6,000 mm with optional mast
- Travel speed, laden/unladen
- 13/15 km/h
- Battery
- 80 V Li-ion
- Turning radius
- 1,885 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 450 mm
- Tilt of mast/fork carriage forward/backward
- 6/8 °
- Height, mast lowered
- 2,000 mm
- Free lift
- 140 mm
- Height, mast extended
- 4,052 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 1,040 mm
- Lift speed, laden/unladen
- 260/400 m/s
- Lowering speed, laden/unladen
- 360/460 m/s
Performance
- Max. drawbar pull, laden/unladen
- -N
- Max. gradeability, laden/unladen
- 13/15 %
- Service brake
- Mechanical/Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 10 kW
- Lift motor rating at S3 15%
- 11 kW
- Battery voltage/nominal capacity
- 80/250(lead-acid)V/Ah
- Battery type
- Lead Acid/Li-ion
- Battery weight
- 700 kg
- Energy consumption according to DIN EN 16796
- 7.29 ¹⁾kWh/h
- Type of drive unit
- AC
- Charger output current
- 35 A
Dimensions and weight
- Wheelbase
- 1,345 mm
- Service weight
- 4,170 kg
- Axle loading, laden front/rear
- 5,942/728 kg
- Axle loading, unladen front/rear
- 1,674/2,496 kg
- Tread width, front
- 915 mm
- Tread width, rear
- 920 mm
- Height of overhead guard (cabin)
- 2,130 mm
- Seat height relating to SIP/stand height
- 1,090 mm
- Coupling height
- 290 mm
- Overall length
- 3,242 mm
- Length to face of forks
- 2,172 mm
- Overall width
- 1,090 mm
- Fork dimensions
- 40 × 122 × 1,070 mm
- Ground clearance, laden, below mast
- 85/100 mm
- Ground clearance, centre of wheelbase
- 95/100 mm
- Aisle width for pallets 1000×1200 crossways
- 3,535 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,735 mm
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 6.50-10mm
- Tyre size, rear
- 16 × 6-8mm
- Wheels, number front/rear (x=drive wheels)
- 2x/2
General
- Drive
- Electric
- Operator type
- Seated
- Turnover output according to VDI 2198
- 155t/h
- Turnover efficiency according to VDI 2198
- 21.26t/kWh
- Operating pressure for attachments
- 200bar
- Oil volume for attachments
- 65ℓ/min
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 72 dB(A)
Bought in Aruba. Supported in Aruba.
With ProLift you deal with one local partner, from the first question to service years later.
-
Ready to work
New machines are delivered fully assembled, inspected and ready to work.
-
Maintenance and repairs
Preventive maintenance and repairs to keep your machine running.
-
Parts
Support and parts arranged directly for Aruba, to keep downtime short.
-
One point of contact
One dedicated partner from the first quote to final delivery and beyond.
Interested in the CPD25FC?
Talk to ProLift. We'll help you choose the right configuration for your operation.
