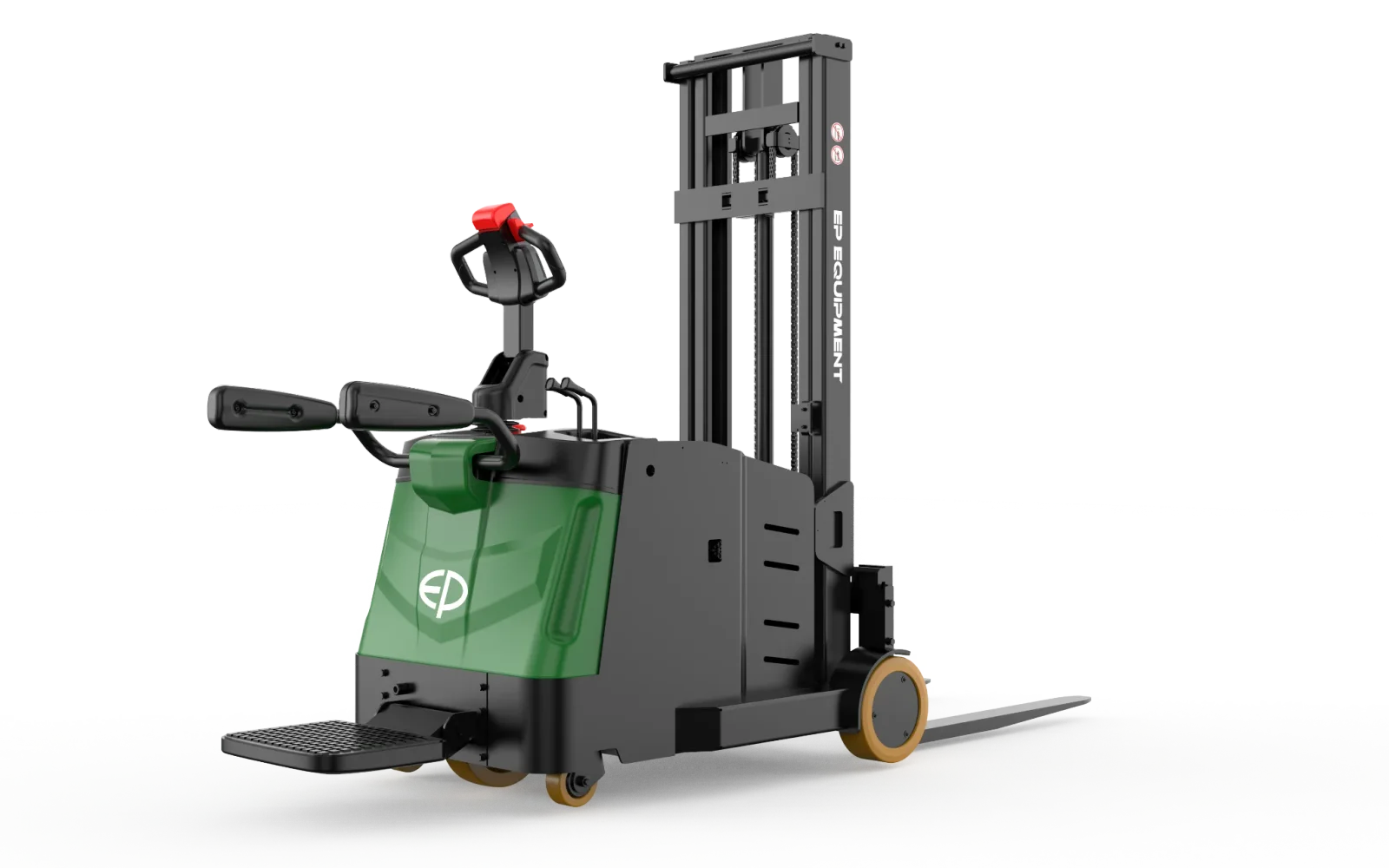

Electric stacker
RSC101
- Load capacity
- 1,000 kg
- Lift heightUp to 3,580 mm with optional mast
- 2,480 mm
- Battery
- 48 V lead-acid
Overview
An electric stacker with a rated capacity of 1,000 kg, a lift height of 2,480 mm (up to 3,580 mm with optional mast) and a 48 V lead-acid battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,000 kg
- Lift height (standard mast)
- 2,480 mm
- Max. lift height
- 3,580 mm with optional mast
- Travel speed, laden/unladen
- 4.5/5.0 km/h
- Battery
- 48 V lead-acid
- Turning radius
- 1,338/1,732 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 154 mm
- Tilt of mast/fork carriage forward/backward
- 3/6 °
- Height, mast lowered
- 1,835 mm
- Free lift
- - mm
- Height, mast extended
- 3,050 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 850 mm
- Lift speed, laden/unladen
- 0.12/0.16 m/s
- Lowering speed, laden/unladen
- 0.135/0.13 m/s
Performance
- Max. drawbar pull, laden/unladen
- -N
- Max. gradeability, laden/unladen
- 5/8 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.8 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 85 Ah
- Battery type
- Lead Acid
- Battery weight
- 96 kg
- Type of drive unit
- DC
- Charger output current
- 10 A
Dimensions and weight
- Wheelbase
- 1,020 mm
- Service weight
- 1,620 kg
- Axle loading, laden front/rear
- 2,380/240 kg
- Axle loading, unladen front/rear
- 670/950 kg
- Tread width, front
- 948 mm
- Tread width, rear
- 690 mm
- Height of overhead guard (cabin)
- - mm
- Seat height relating to SIP/stand height
- 190 mm
- Coupling height
- - mm
- Overall length
- 2,552/2,955 mm
- Length to face of forks
- 1,482/1,885 mm
- Overall width
- 1,054 mm
- Fork dimensions
- 35/100/1,070 mm
- Ground clearance, laden, below mast
- 80 mm
- Ground clearance, centre of wheelbase
- 100 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Φ298 × 102mm
- Tyre size, rear
- Ф300 × 90mm
- Wheels, number front/rear (x=drive wheels)
- 1x，2/2
General
- Drive
- Electric
- Operator type
- standing/pedestrian
- Distance between fork-arms
- 200-810 mm
- Oil volume for attachments
- -ℓ/min
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
