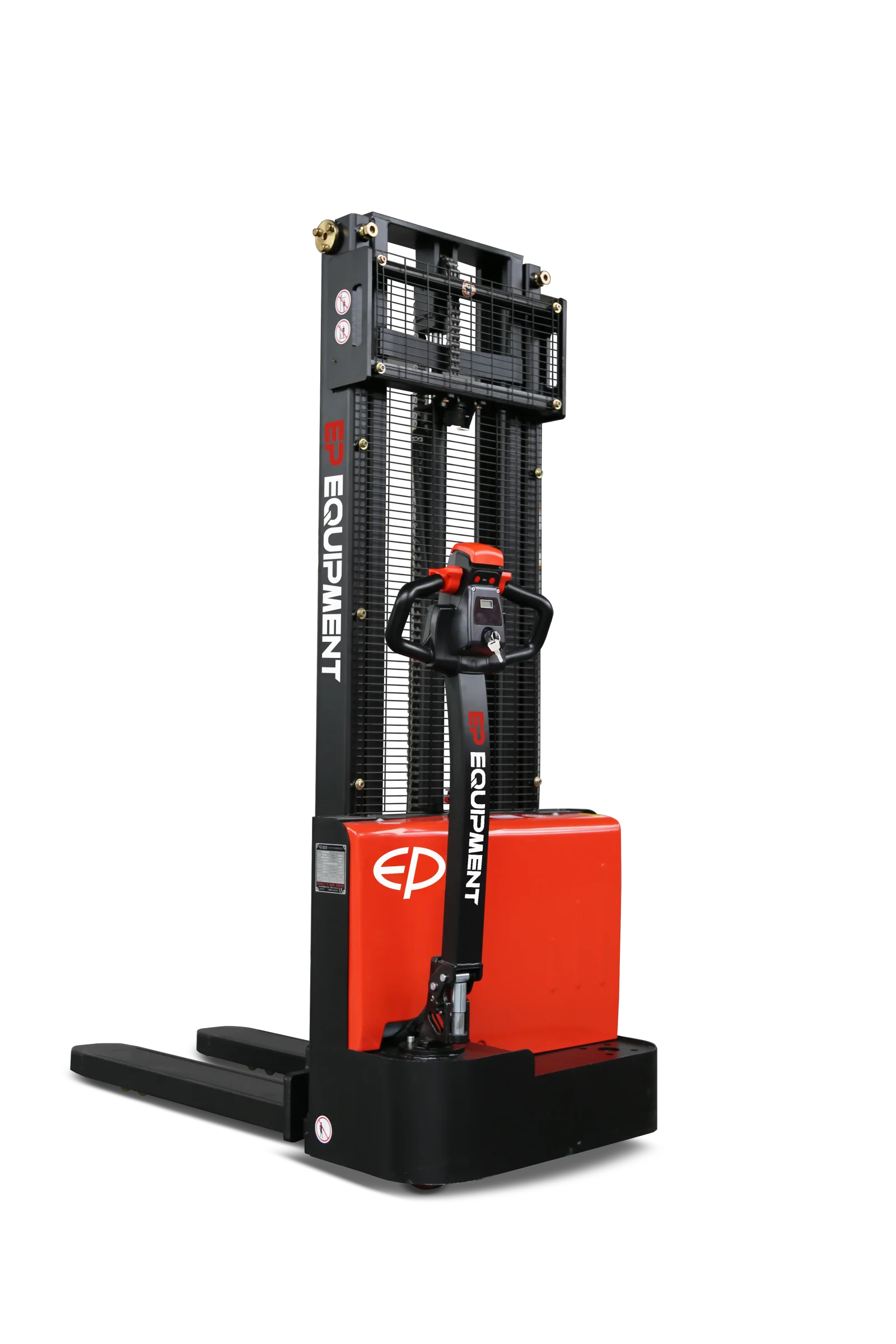

Pedestrian stacker
ESL122
- Load capacity
- 1,200 kg
- Lift heightUp to 3,013 mm with optional mast
- 2,930 mm
- Battery
- 24 V Li-ion
Overview
A pedestrian stacker with a rated capacity of 1,200 kg, a lift height of 2,930 mm (up to 3,013 mm with optional mast) and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,200 kg
- Lift height (standard mast)
- 2,930 mm
- Max. lift height
- 3,013 mm with optional mast
- Travel speed, laden/unladen
- 4.2/4.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,464 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 798 mm
- Height, mast lowered
- 2,104 mm
- Height, mast extended
- 3,532 mm
- Fork carriage width
- 680 mm
- Lift speed, laden/unladen
- 0.09/0.013 m/s
- Lowering speed, laden/unladen
- 0.10/0.085 m/s
Performance
- Height drawbar in driving position min./max.
- 760/1,140 mm
- Max. gradeability, laden/unladen
- 3/10 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.75 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 100 Ah
- Battery type
- Li-ion
- Battery weight
- 28 kg
- Energy consumption according to DIN EN 16796
- 0.62kWh/h
- Type of drive unit
- DC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,212 mm
- Service weight
- 570 kg
- Axle loading, laden front/rear
- 635/1,135 kg
- Axle loading, unladen front/rear
- 435/135 kg
- Tread width, front
- 531 mm
- Tread width, rear
- 405 mm
- Height, lowered
- 90 mm
- Overall length
- 1,715 mm
- Length to face of forks
- 565 mm
- Overall width
- 792 mm
- Fork dimensions
- 60/170/1,150 mm
- Ground clearance, centre of wheelbase
- 23 mm
- Aisle width for pallets 1000×1200 crossways
- 2,296 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,230 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ø210 × 70mm
- Tyre size, rear
- Ø74 × 72mm
- Additional wheels (castor wheels)
- Ø130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x，1/4
General
- Drive
- Electric
- Distance between fork-arms
- 570 mm
- Turnover output according to VDI 2198
- 31.2
- Turnover efficiency according to VDI 2198
- 55.12
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
