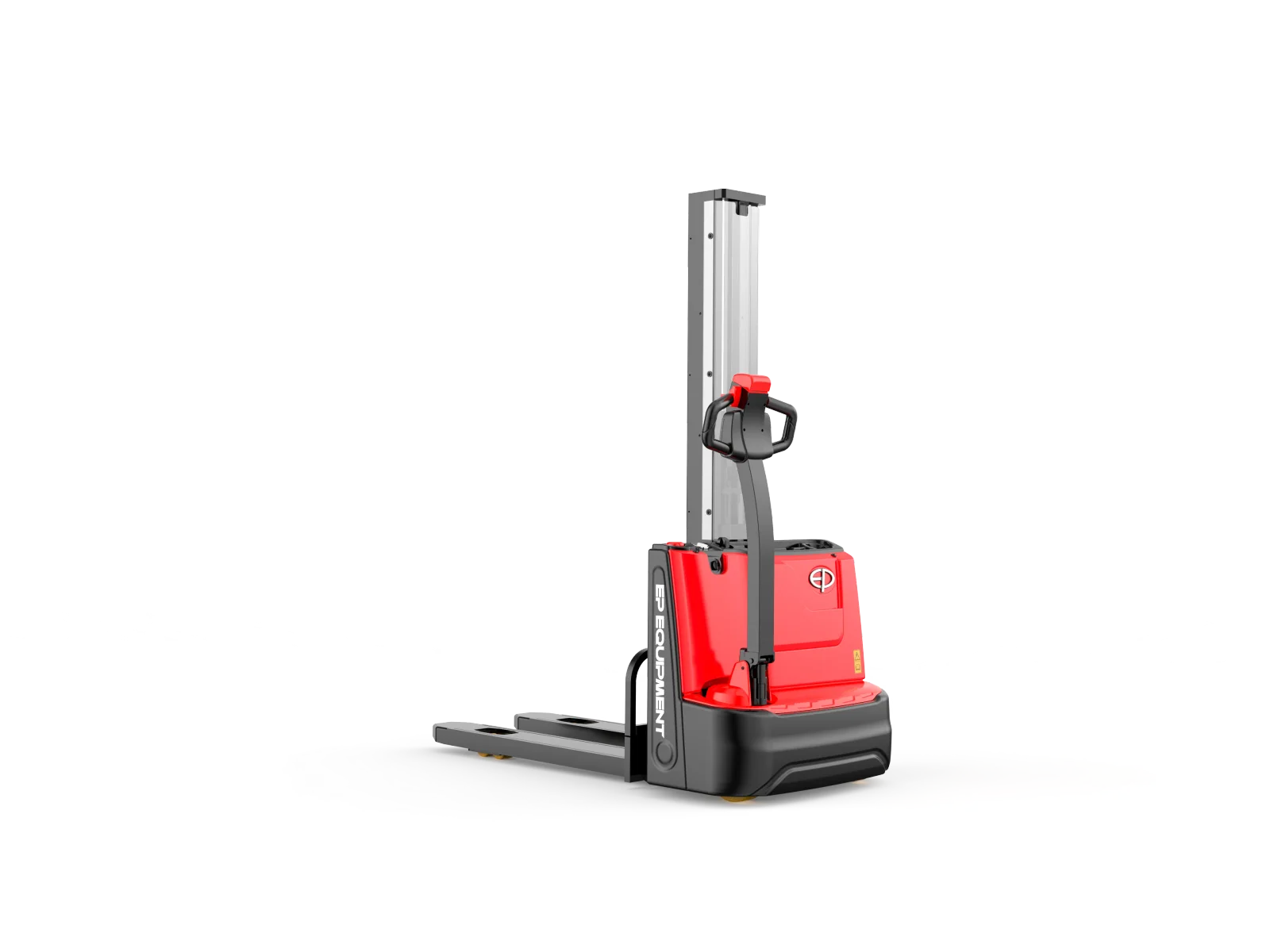

Electric pedestrian stacker mono mast
ESA121-M
- Load capacity
- 1,200 kg
- Lift heightUp to 1,953 mm with optional mast
- 1,530 mm
- Battery
- 24 V Li-ion
Overview
An electric pedestrian stacker mono mast with a rated capacity of 1,200 kg, a lift height of 1,530 mm (up to 1,953 mm with optional mast) and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,200 kg
- Lift height (standard mast)
- 1,530 mm
- Max. lift height
- 1,953 mm with optional mast
- Travel speed, laden/unladen
- 4.0/4.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,452 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 808 mm
- Height, mast lowered
- 1,951 mm
- Free lift
- 1,530 mm
- Height, mast extended
- 1,991 mm
- Fork carriage width
- 700 mm
- Lift speed, laden/unladen
- 0.15/0.25 m/s
- Lowering speed, laden/unladen
- 0.19/0.14 m/s
Performance
- Height drawbar in driving position min./max.
- 760/1,140 mm
- Max. gradeability, laden/unladen
- 3/10 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.65 kW
- Lift motor rating at S3 15%
- 3.0 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 105 Ah
- Battery type
- Li-Ion/AGM
- Battery weight
- 61 kg
- Energy consumption according to DIN EN 16796
- - ¹⁾kWh/h
- Type of drive unit
- DC
- Charger output current
- 15 A
Dimensions and weight
- Wheelbase
- 1,210 mm
- Service weight
- 490 kg
- Axle loading, laden front/rear
- 560/1,130 kg
- Axle loading, unladen front/rear
- 360/130 kg
- Tread width, front
- 543 mm
- Tread width, rear
- 400 mm
- Height of overhead guard (cabin)
- 1,991 mm
- Seat height relating to SIP/stand height
- 90 mm
- Height of wheel arms
- -mm
- Height, lowered
- 90 mm
- Overall length
- 1,742 mm
- Length to face of forks
- 592 mm
- Overall width
- 826 mm
- Fork dimensions
- 60/170/1,150 mm
- Ground clearance, laden, below mast
- - mm
- Ground clearance, centre of wheelbase
- 23 mm
- Aisle width for pallets 1000×1200 crossways
- 2,282 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,212 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ø214 × 70mm
- Tyre size, rear
- Ø80 × 61mm
- Additional wheels (castor wheels)
- Ø130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x，1/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 570 mm
- Turnover output according to VDI 2198
- -t/h
- Turnover efficiency according to VDI 2198
- -t/kWh
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
