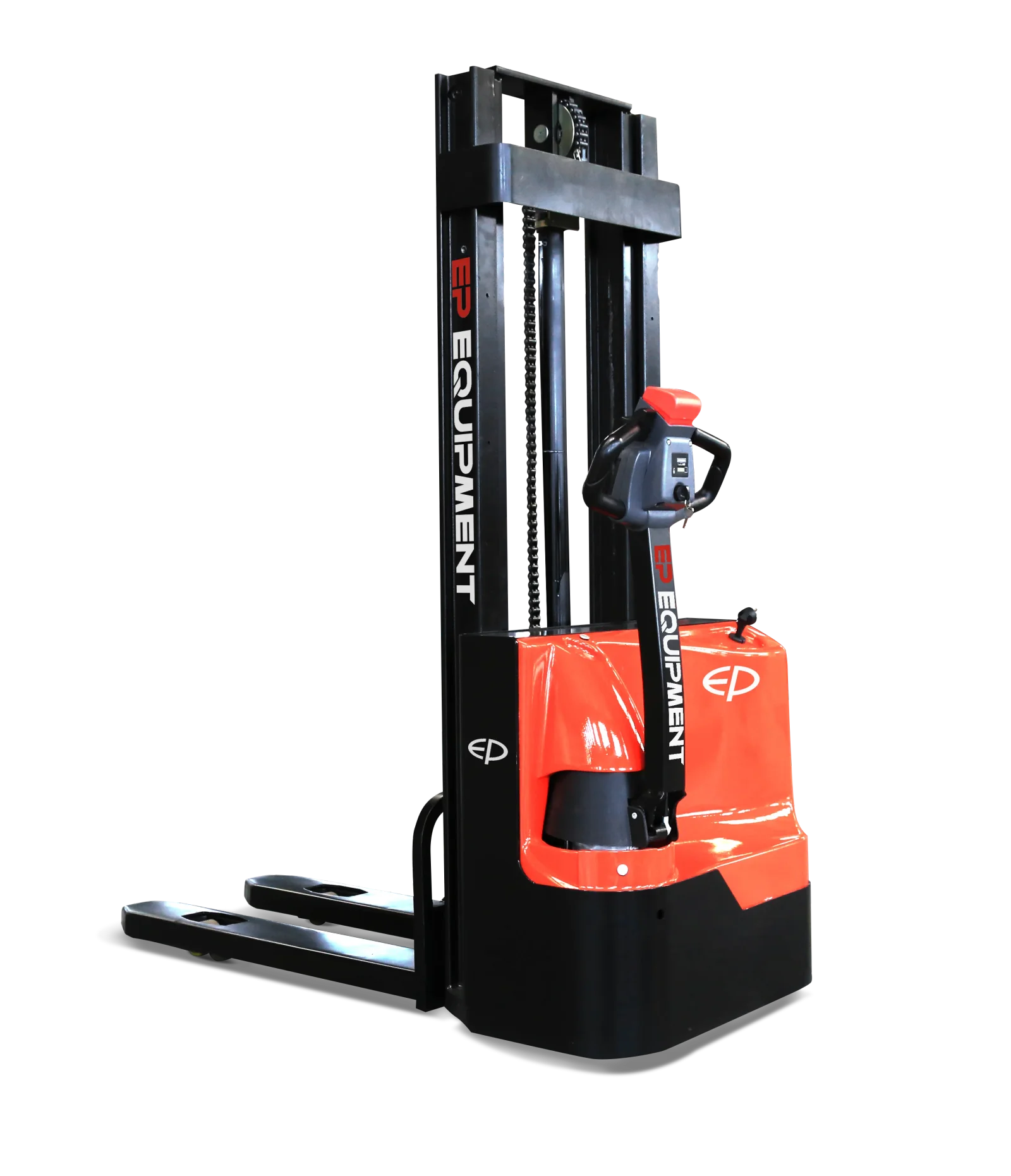

Electric stacker
ES15-15ES
- Load capacity
- 1,500 kg
- Lift heightUp to 4,165 mm with optional mast
- 3,227 mm
- Battery
- 24 V AGM
Overview
An electric stacker with a rated capacity of 1,500 kg, a lift height of 3,227 mm (up to 4,165 mm with optional mast) and a 24 V AGM battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height (standard mast)
- 3,227 mm
- Max. lift height
- 4,165 mm with optional mast
- Travel speed, laden/unladen
- 5/5 km/h
- Battery
- 24 V AGM
- Turning radius
- 1,500 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 805 mm
- Height, mast lowered
- 2,128 mm
- Height, mast extended
- 3,743 mm
- Fork carriage width
- 680 mm
- Lift speed, laden/unladen
- 0.13/0.2 m/s
- Lowering speed, laden/unladen
- 0.13/0.13 m/s
Performance
- Height drawbar in driving position min./max.
- 1,150/1,480 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.27 kW
- Lift motor rating at S3 15%
- 3 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 125 Ah
- Battery type
- AGM
- Battery weight
- 60 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,240 mm
- Service weight
- 755 kg
- Axle loading, laden front/rear
- 805/1,450 kg
- Axle loading, unladen front/rear
- 545/210 kg
- Tread width, front
- 538 mm
- Tread width, rear
- 400 mm
- Height, lowered
- 88 mm
- Overall length
- 1,740 mm
- Length to face of forks
- 575 mm
- Overall width
- 800 mm
- Fork dimensions
- 60 × 170 × 1,150 mm
- Ground clearance, centre of wheelbase
- 28 mm
- Aisle width for pallets 1000×1200 crossways
- 2,340 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,260 mm
Wheels and tyres
- Tyres
- PU/PU
- Tyre size, front
- Ф230 × 75mm
- Tyre size, rear
- Ф80 × 60mm
- Additional wheels (castor wheels)
- Ф130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x +2/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 570 mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
