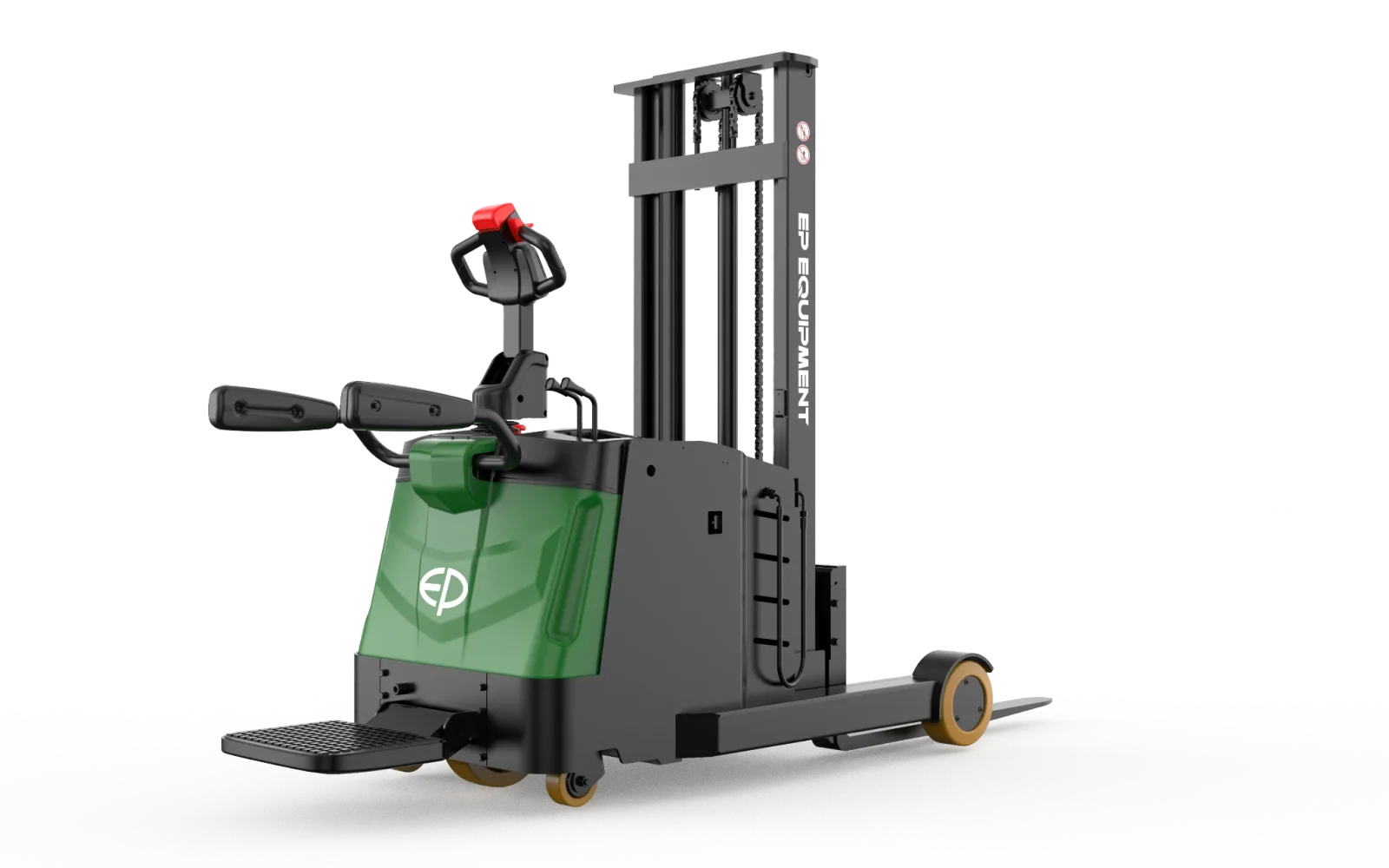

Electric reach truck
EQA151
- Load capacity
- 1,500 kg
- Lift heightUp to 3,590 mm with optional mast
- 2,490 mm
- Battery
- 48 V Li-ion
Overview
An electric reach truck with a rated capacity of 1,500 kg, a lift height of 2,490 mm (up to 3,590 mm with optional mast) and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height (standard mast)
- 2,490 mm
- Max. lift height
- 3,590 mm with optional mast
- Travel speed, laden/unladen
- 4.5/5.0 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,710/2,106 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 368 mm
- Height, mast lowered
- 1,760 mm
- Height, mast extended
- 2,975 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 705 mm
- Lift speed, laden/unladen
- 0.09/0.13 m/s
- Lowering speed, laden/unladen
- 0.11/0.11 m/s
Performance
- Max. gradeability, laden/unladen
- 5/8 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.8 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 105 Ah
- Battery type
- Lead Acid/Li-ion
- Battery weight
- 122 kg
- Type of drive unit
- DC
- Charger output current
- 15 A
Dimensions and weight
- Wheelbase
- 1,395 mm
- Service weight
- 1,790 kg
- Axle loading, laden front/rear
- 330/2,960 kg
- Axle loading, unladen front/rear
- 1,240/550 kg
- Tread width, front
- 690 mm
- Tread width, rear
- 894 mm
- Overall height
- 2,975 mm
- Seat height relating to SIP/stand height
- 190 mm
- Height of wheel arms
- 276mm
- Width of loading surface
- 200-665
- Overall length
- 2,405/2,808 mm
- Length to face of forks
- 1,335/1,738 mm
- Overall width
- 1,000 mm
- Fork dimensions
- 40/100/1,070 mm
- Ground clearance, laden, below mast
- 90 mm
- Ground clearance, centre of wheelbase
- 85 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф300 × 90mm
- Tyre size, rear
- Φ254 × 102mm
- Additional wheels (castor wheels)
- Φ130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x，2/2
- Distance between wheel arms/loading surfaces
- 688
General
- Drive
- Electric
- Operator type
- Stand-on/Pedestrian
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
