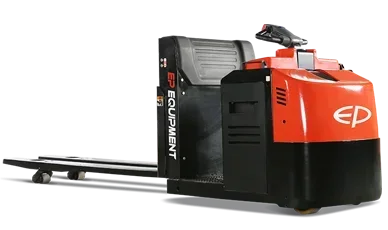

Order picker
EPT20-RAP
- Load capacity
- 2,000 kg
- Lift height
- 120 mm
- Battery
- 24 V
Overview
An order picker with a rated capacity of 2,000 kg, a lift height of 120 mm and a 24 V battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height
- 120 mm
- Travel speed, laden/unladen
- 8/13 km/h
- Battery
- 24 V
- Turning radius
- 2,348 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 980 mm
- Lift speed, laden/unladen
- 0.025/0.021 m/s
- Lowering speed, laden/unladen
- 0.026/0.034 m/s
Performance
- Height drawbar in driving position min./max.
- 1,220 mm
- Max. gradeability, laden/unladen
- 9/12 %
- Service brake
- electromagnetic
- Parking brake
- electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 2.5 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 360 Ah
- Battery weight
- 330 kg
- Energy consumption according to DIN EN 16796
- 0.344kWh/h
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 2,161 mm
- Service weight
- 940 kg
- Axle loading, laden front/rear
- 1,200/1,740 kg
- Axle loading, unladen front/rear
- 780/160 kg
- Tread width, front
- 468 mm
- Tread width, rear
- 370/515 mm
- Overall height
- 1,220 mm
- Height, lowered
- 85 mm
- Length of loading surface
- 1,366
- Overall length
- 2,516 mm
- Length to face of forks
- 1,366 mm
- Overall width
- 800 mm
- Fork dimensions
- 55/170/1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,568 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,768 mm
Wheels and tyres
- Tyres
- PU
- Tyre size, front
- 230 × 90mm
- Tyre size, rear
- 85 × 70mm
- Additional wheels (castor wheels)
- 180 × 65mm
- Wheels, number front/rear (x=drive wheels)
- 1x +1/4/1x +1/2
General
- Drive
- Electric
- Operator type
- Stand-on
- Distance between fork-arms
- 540/685 mm
- Turnover output according to VDI 2198
- 137.43
- Turnover efficiency according to VDI 2198
- 156.77
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
