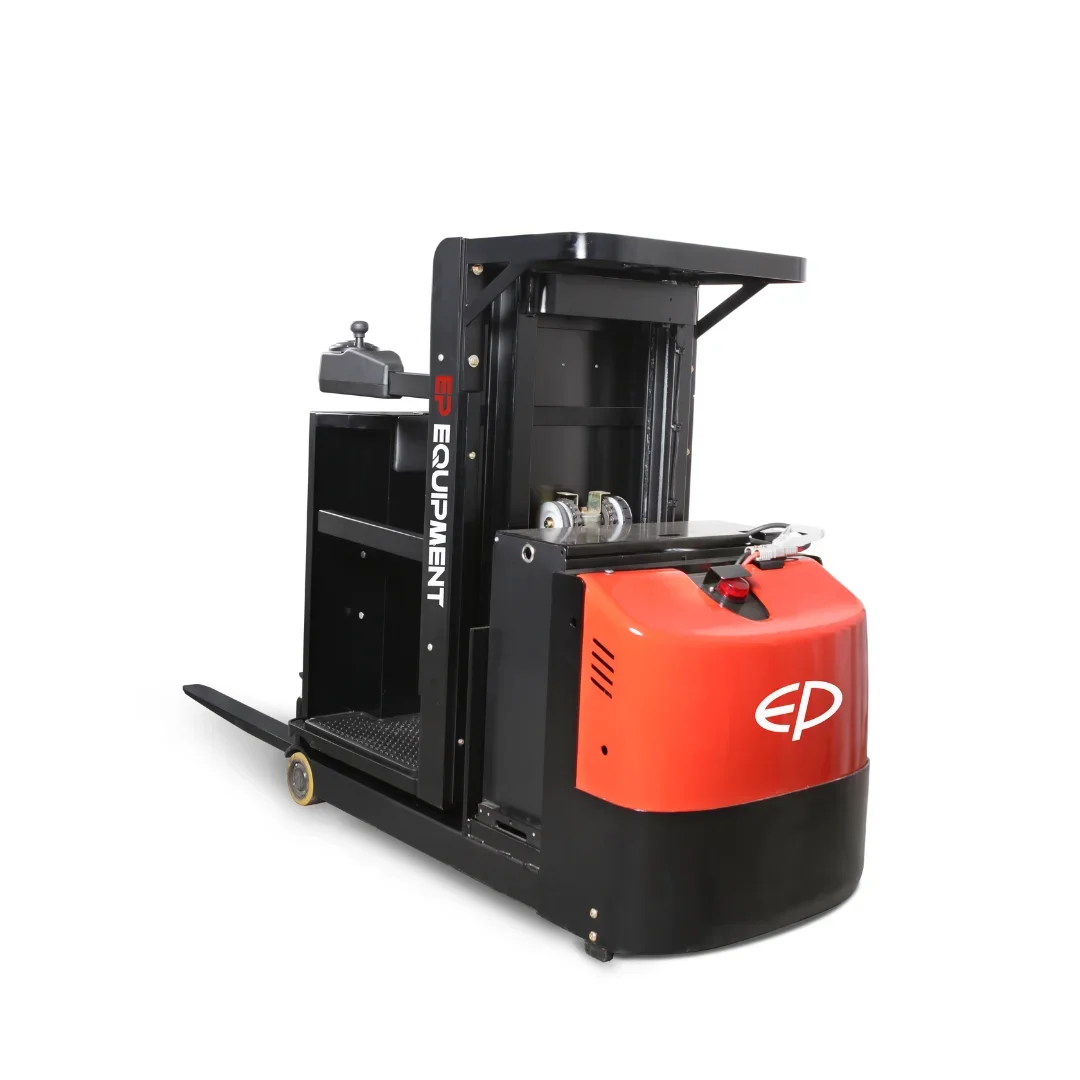

Medium level order picker
JX2-1
- Load capacity
- 700 kg
- Lift height
- 1,063 mm
- Battery
- 24 V lead-acid
Overview
A medium level order picker with a rated capacity of 700 kg, a lift height of 1,063 mm and a 24 V lead-acid battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 700 kg
- Lift height
- 1,063 mm
- Travel speed, laden/unladen
- 6/6 km/h
- Battery
- 24 V lead-acid
- Turning radius
- 1,470 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 140 mm
- Free lift
- 737 mm
- Height, mast extended
- 2,560 mm
- Fork carriage width
- 560 mm
- Lift speed, laden/unladen
- 0.13/0.16 m/s
- Lowering speed, laden/unladen
- 0.16/0.18 m/s
Performance
- Height drawbar in driving position min./max.
- 1,220 mm
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 2.5 kW
- Lift motor rating at S3 15%
- 3 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 360 Ah
- Battery type
- Lead Acid
- Battery weight
- 330 kg
- Type of drive unit
- AC
- Charger output current
- 50 A
Dimensions and weight
- Wheelbase
- 1,280 mm
- Service weight
- 1,620 kg
- Axle loading, laden front/rear
- 1,800/720 kg
- Axle loading, unladen front/rear
- 700/920 kg
- Tread width, front
- 710 mm
- Tread width, rear
- 570 mm
- Height of overhead guard (cabin)
- 1,560 mm
- Seat height relating to SIP/stand height
- 220 mm
- Height, lowered
- 63 mm
- Overall length
- 2,520 mm
- Length to face of forks
- 1,605 mm
- Overall width
- 800 mm
- Fork dimensions
- 35/100/915 mm
- Ground clearance, laden, below mast
- 50 mm
- Ground clearance, centre of wheelbase
- 50 mm
- Aisle width for pallets 1000×1200 crossways
- 2,950 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,070 mm
Wheels and tyres
- Tyres
- Polyurethane/Solidrubber
- Tyre size, front
- 150 × 90mm
- Tyre size, rear
- 230 × 75mm
- Additional wheels (castor wheels)
- φ74 × 48mm
- Wheels, number front/rear (x=drive wheels)
- 1 × 2/2
General
- Drive
- Electric
- Operator type
- Order-picker
- Distance between fork-arms
- 560 mm
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
