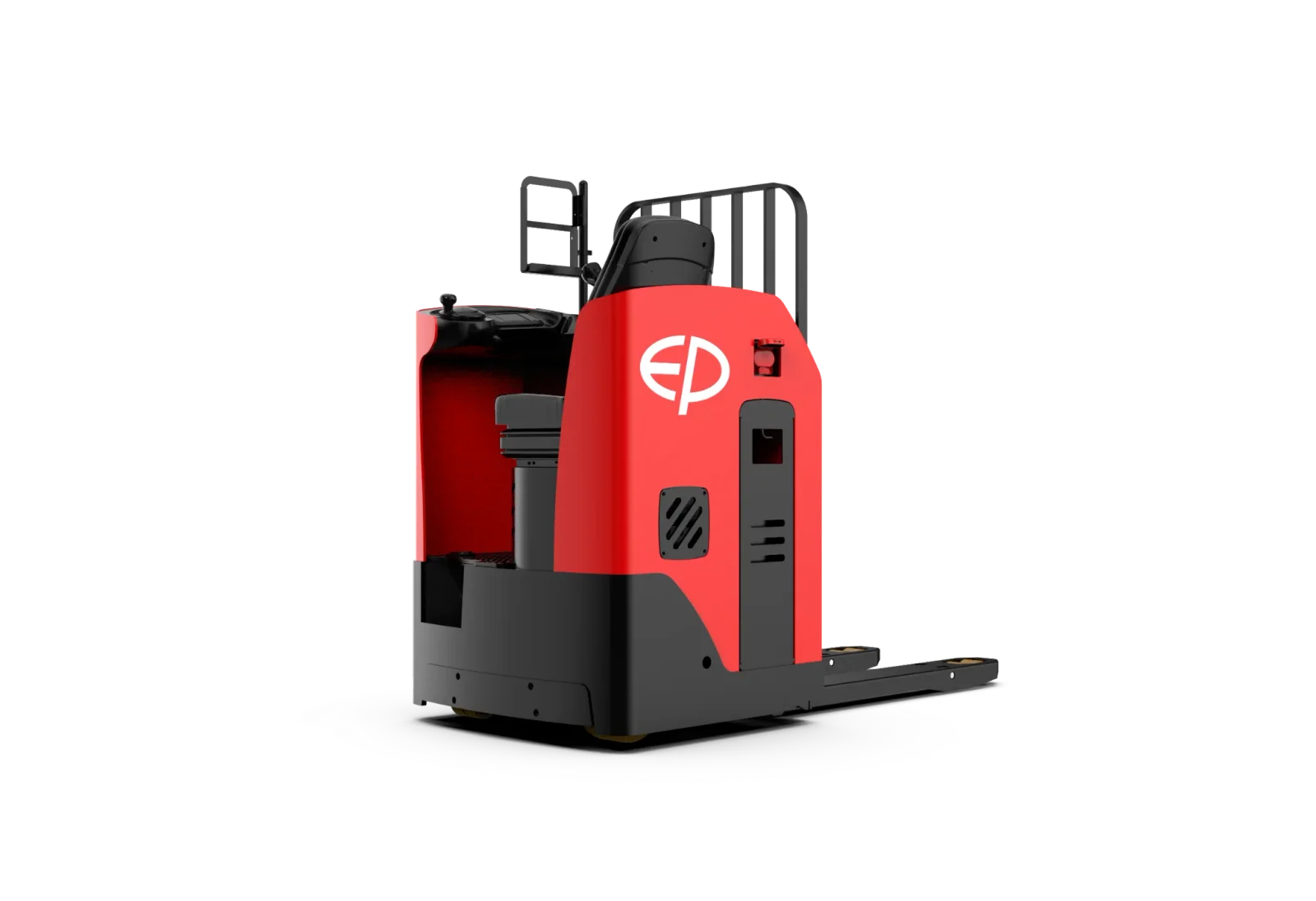

Li-ion seated pallet truck
ZPL201
- Load capacity
- 2,000 kg
- Lift height
- 120 mm
- Battery
- 48 V Li-ion
Overview
A Li-ion seated pallet truck with a rated capacity of 2,000 kg, a lift height of 120 mm and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height
- 120 mm
- Travel speed, laden/unladen
- 8/8 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,814 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 978 mm
- Lift speed, laden/unladen
- 0.044/0.044 m/s
- Lowering speed, laden/unladen
- 0.024/0.024 m/s
Performance
- Height drawbar in driving position min./max.
- 1,315 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 4.0 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 150 Ah
- Battery type
- Li-ion
- Battery weight
- 92 kg
- Energy consumption according to DIN EN 16796
- 0.9kWh/h
- Type of drive unit
- AC
- Charger output current
- 50 A
Dimensions and weight
- Wheelbase
- 1,640 mm
- Service weight
- 905 kg
- Axle loading, laden front/rear
- 1,769/1,136 kg
- Axle loading, unladen front/rear
- 182/723 kg
- Tread width, front
- 610 mm
- Tread width, rear
- 515 mm
- Height, lowered
- 85 mm
- Overall length
- 2,038 mm
- Length to face of forks
- 888 mm
- Overall width
- 932 mm
- Fork dimensions
- 55 × 170 × 1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,620 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,504 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Φ260 × 105mm
- Tyre size, rear
- Φ85 × 70mm
- Additional wheels (castor wheels)
- Φ100 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x,2/4
General
- Drive
- Electric
- Operator type
- Seated
- Distance between fork-arms
- 685/540 mm
- Turnover output according to VDI 2198
- 200
- Turnover efficiency according to VDI 2198
- 222
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
