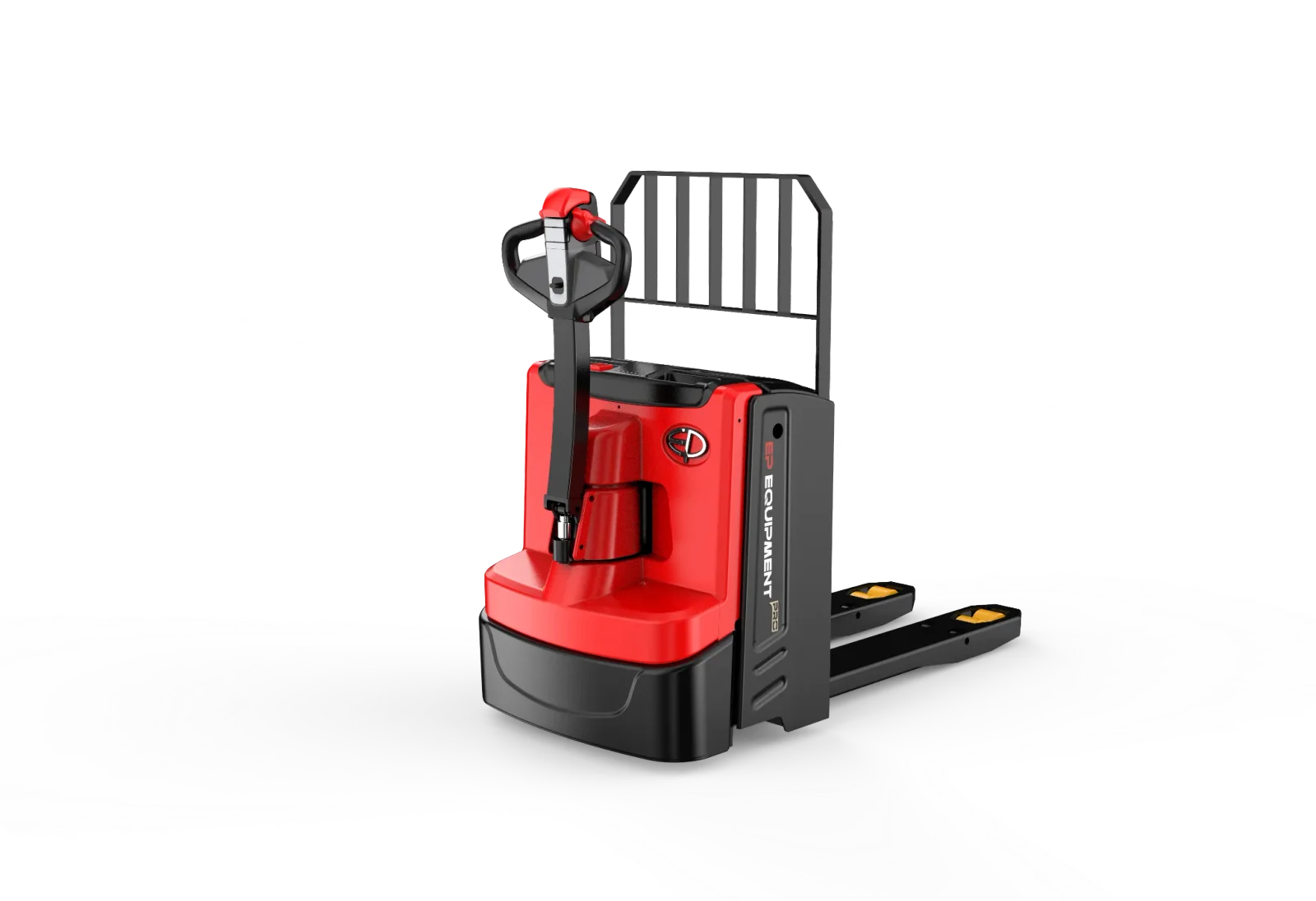

Electric pallet truck
WAL30-PRO
- Load capacity
- 3,000 kg
- Lift height
- 125 mm
- Battery
- 24 V Li-ion
Overview
An electric pallet truck with a rated capacity of 3,000 kg, a lift height of 125 mm and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 3,000 kg
- Lift height
- 125 mm
- Travel speed, laden/unladen
- 6/6 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,555 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 980 mm
- Lift speed, laden/unladen
- 0.055/0.068 m/s
- Lowering speed, laden/unladen
- 0.04/0.04 m/s
Performance
- Height drawbar in driving position min./max.
- 900/1,230 mm
- Max. gradeability, laden/unladen
- 10/20 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage/nominal capacity
- 24/205V/Ah
- Battery type
- Li-ion
- Battery weight
- 44 kg
- Energy consumption according to DIN EN 16796
- 0.515 ¹⁾kWh/h
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,378 mm
- Service weight
- 390 kg
- Axle loading, laden front/rear
- 2,390/1,000 kg
- Axle loading, unladen front/rear
- 90/300 kg
- Tread width_front
- 500mm
- Height, lowered
- 85 mm
- Overall length
- 1,710 mm
- Length to face of forks
- 560 mm
- Overall width
- 720 mm
- Fork dimensions
- 55/170/1,150 mm
- Ground clearance, centre of wheelbase
- 27 mm
- Aisle width for pallets 1000×1200 crossways
- 2,208 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,008 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 230 × 75mm
- Tyre size, rear
- 80 × 85mm
- Additional wheels (castor wheels)
- 74 × 30mm
- Wheels, number front/rear (x=drive wheels)
- 1/2/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 540/685 mm
- Turnover output according to VDI 2198
- 156t/h
- Turnover efficiency according to VDI 2198
- 197.97t/kWh
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
