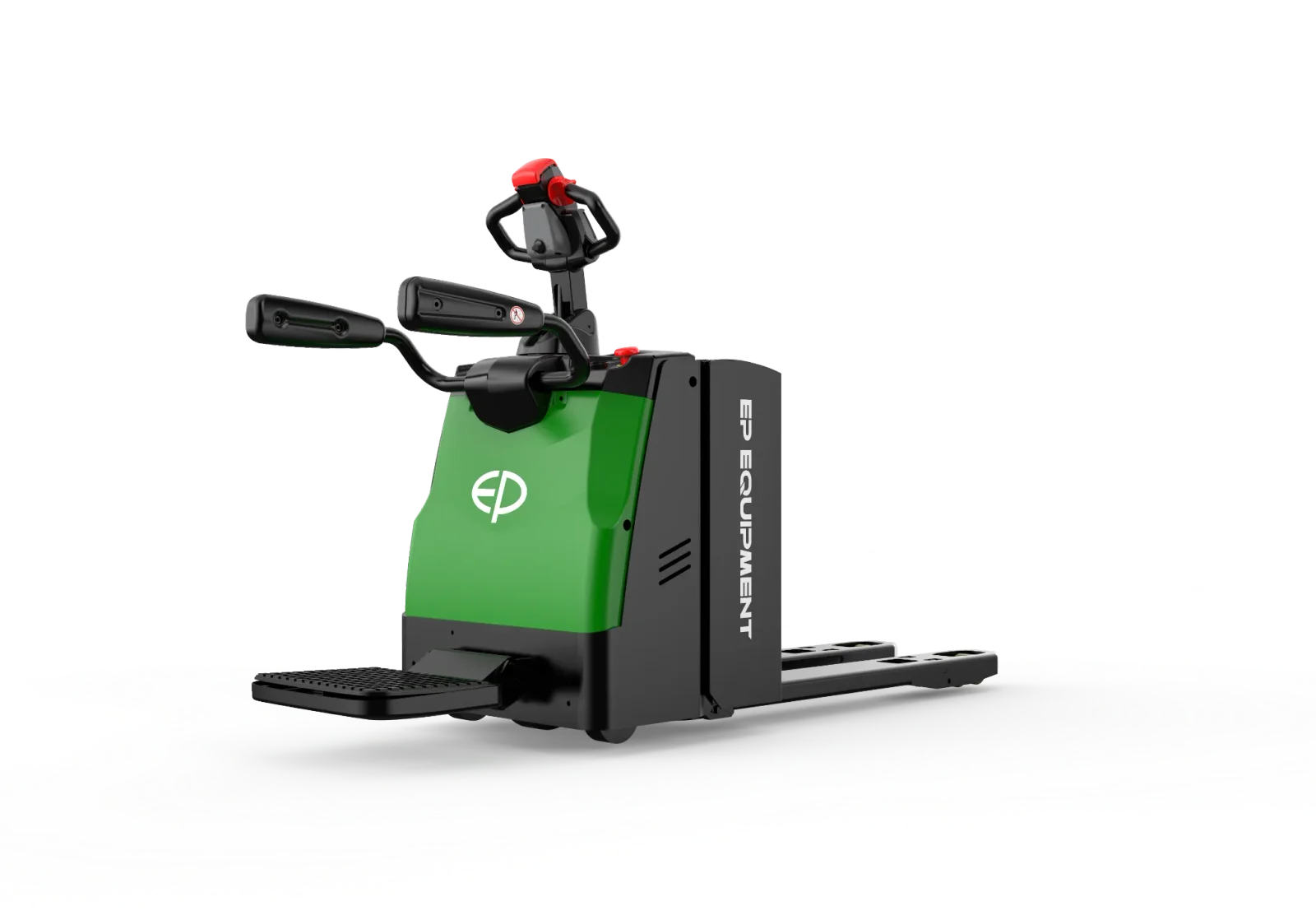

Ride on pallet truck
RPL201E
- Load capacity
- 2,000 kg
- Lift height
- 120 mm
- Battery
- 24 V Li-ion
Overview
A ride on pallet truck with a rated capacity of 2,000 kg, a lift height of 120 mm and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height
- 120 mm
- Travel speed, laden/unladen
- 7.5/8 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,718 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 980 mm
- Lift speed, laden/unladen
- 0.050/0.054 m/s
- Lowering speed, laden/unladen
- 0.067/0.054 m/s
Performance
- Height drawbar in driving position min./max.
- 1,075/1,288 mm
- Max. drawbar pull, laden/unladen
- 8/16N
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 150 Ah
- Battery type
- Li-ion
- Battery weight
- 50 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,433 mm
- Service weight
- 655 kg
- Axle loading, laden front/rear
- 1,055/1,600 kg
- Axle loading, unladen front/rear
- 535/120 kg
- Tread width, front
- 510 mm
- Tread width, rear
- 370/515 mm
- Height, lowered
- 85 mm
- Overall length
- 1,954 mm
- Length to face of forks
- 804 mm
- Overall width
- 734 mm
- Fork dimensions
- 55 × 170 × 1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,516 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,376 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф230 × 75mm
- Tyre size, rear
- Ф85 × 70/Ф83 × 115mm
- Additional wheels (castor wheels)
- Ф130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x+2/4/1x+2/2
- Distance between wheel arms/loading surfaces
- 540/685
General
- Drive
- Electric
- Operator type
- Standing
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- <74 dB(A)
