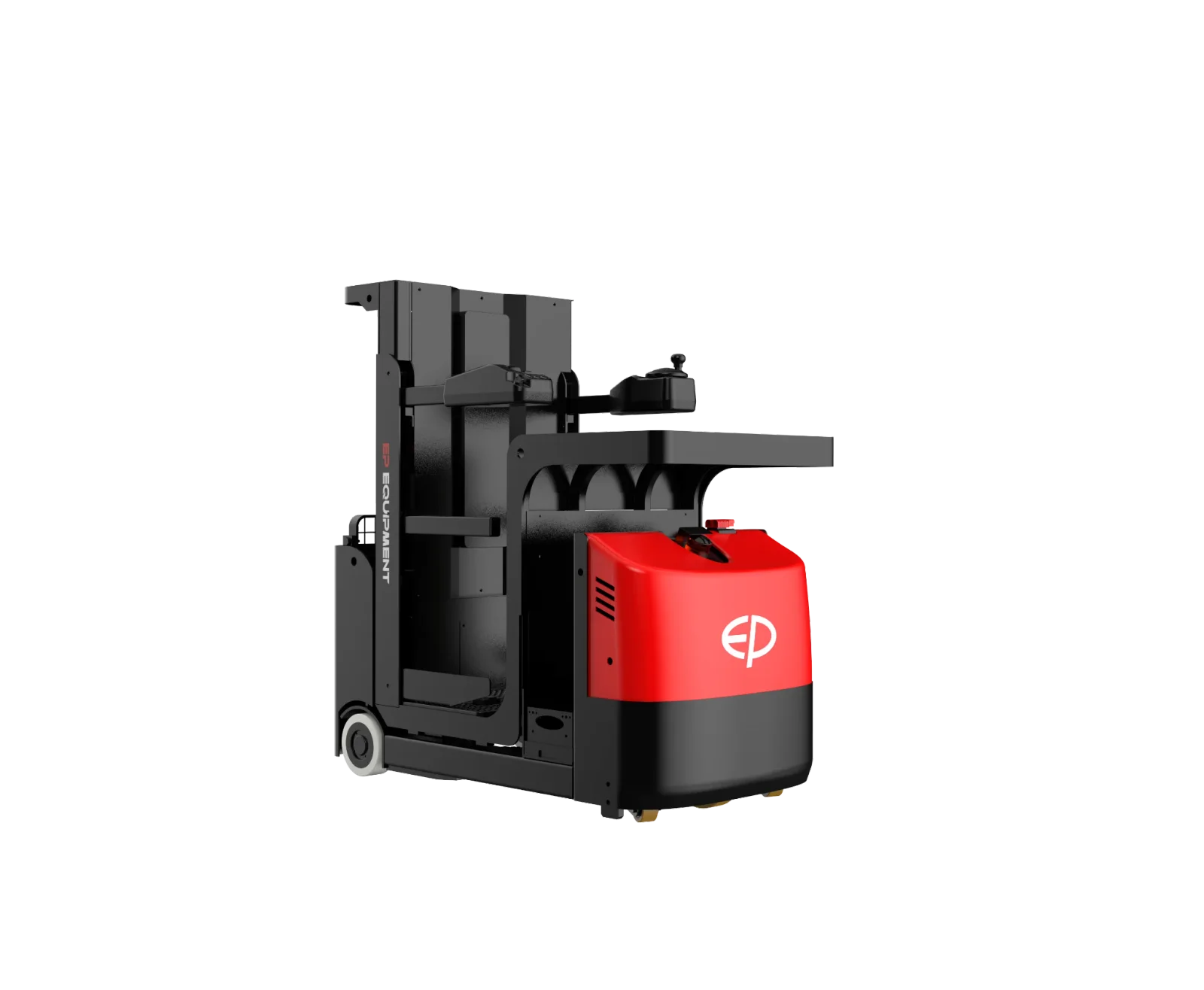

Medium level Li-ion order picker
JX1-32
- Load capacity
- 136/227/137 kg
- Lift height
- 4,030 mm
- Battery
- 24 V Li-ion
Overview
A medium level Li-ion order picker with a rated capacity of 136/227/137 kg, a lift height of 4,030 mm and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 136/227/137 kg
- Lift height
- 4,030 mm
- Travel speed, laden/unladen
- 5.5/5.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,385 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- - mm
- Load distance, centre of drive axle to fork
- - mm
- Height, mast lowered
- 1,510 mm
- Free lift
- - mm
- Height, mast extended
- 4,540 mm
- Lift speed, laden/unladen
- 0.17/0.21 m/s
- Lowering speed, laden/unladen
- 0.35/0.26 m/s
Performance
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage/nominal capacity
- 24V205Ah（Li）V/Ah
- Battery type
- Li-ion
- Battery weight
- 189 kg
- Energy consumption according to DIN EN 16796
- - ¹⁾kWh/h
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,150 mm
- Service weight
- 1,268 kg
- Axle loading, laden front/rear
- 724/1,044 kg
- Axle loading, unladen front/rear
- 536/732 kg
- Tread width, front
- 555 mm
- Tread width, rear
- 740 mm
- Height of overhead guard (cabin)
- 1,590 mm
- Seat height relating to SIP/stand height
- 250 mm
- Stand height, elevated
- 3200mm
- Height, lowered
- - mm
- Overall length
- 1,500 mm
- Length to face of forks
- - mm
- Overall width
- 800 mm
- Fork dimensions
- - mm
- Ground clearance, centre of wheelbase
- 50 mm
- Aisle width for pallets 1000×1200 crossways
- - mm
- Aisle width for pallets 800 × 1200 lengthways
- - mm
Wheels and tyres
- Tyres
- Polyurethane/Solidrubber
- Tyre size, front
- φ230 × 75mm
- Tyre size, rear
- φ204 × 76mm
- Additional wheels (castor wheels)
- φ74 × 48mm
- Wheels, number front/rear (x=drive wheels)
- 1x，2/2
General
- Drive
- Electric
- Operator type
- Order-picker
- Distance between fork-arms
- - mm
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
Bought in Aruba. Supported in Aruba.
With ProLift you deal with one local partner, from the first question to service years later.
-
Ready to work
New machines are delivered fully assembled, inspected and ready to work.
-
Maintenance and repairs
Preventive maintenance and repairs to keep your machine running.
-
Parts
Support and parts arranged directly for Aruba, to keep downtime short.
-
One point of contact
One dedicated partner from the first quote to final delivery and beyond.
Interested in the JX1-32?
Talk to ProLift. We'll help you choose the right configuration for your operation.
