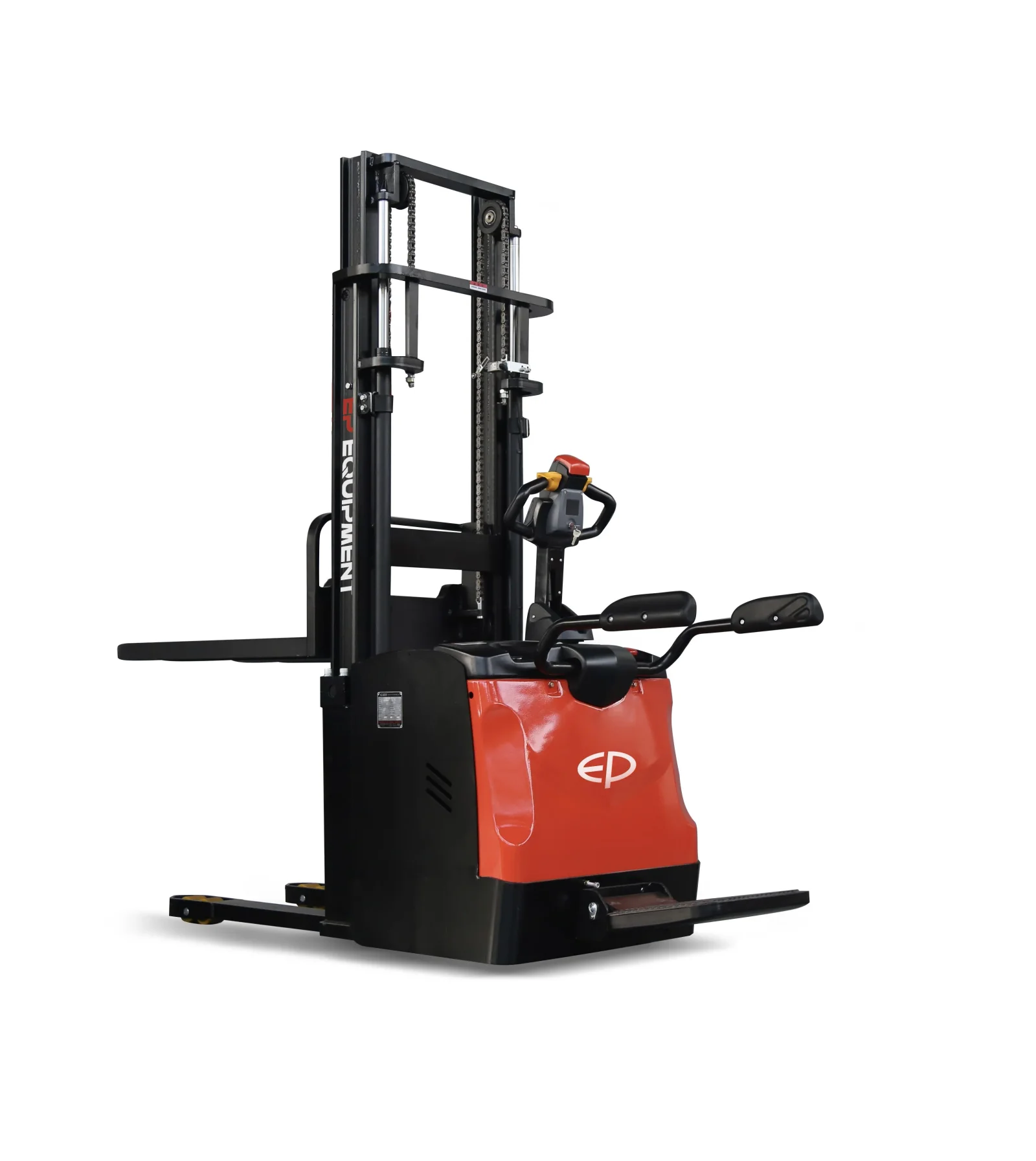

Electric stacker
ES16-RSi
- Load capacity
- 2,000 kg
- Lift heightUp to 3,000 mm with optional mast
- 2,907 mm
- Battery
- 24 V lead-acid
Overview
An electric stacker with a rated capacity of 2,000 kg, a lift height of 2,907 mm (up to 3,000 mm with optional mast) and a 24 V lead-acid battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height (standard mast)
- 2,907 mm
- Max. lift height
- 3,000 mm with optional mast
- Travel speed, laden/unladen
- 5.5/6 km/h
- Battery
- 24 V lead-acid
- Turning radius
- 1,765/2,192 mm
Show all specifications Hide specifications
Capacity and lifting
- Load capacity，load with mast lift
- 1600kg
- Load capacity, load with support arm lift
- 2000kg
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 710 mm
- Height, mast lowered
- 2,020 mm
- Height, mast extended
- 3,460 mm
- Initial lift
- 120mm
- Fork carriage width
- 800 mm
- Lift speed, laden/unladen
- 0.11/0.16 m/s
- Lowering speed, laden/unladen
- 0.14/0.12 m/s
Performance
- Height drawbar in driving position min./max.
- 1,150/1,480 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 2.5 kW
- Lift motor rating at S3 15%
- 3 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 280 Ah
- Battery type
- Lead Acid
- Battery weight
- 270 kg
- Energy consumption according to DIN EN 16796
- N/AkWh/h
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,460 mm
- Service weight
- 1,335 kg
- Axle loading, laden front/rear
- 1,075/1,860 kg
- Axle loading, unladen front/rear
- 935/400 kg
- Tread width, front
- 574 mm
- Tread width, rear
- 366 mm
- Height, lowered
- 93 mm
- Overall length
- 2,195 mm
- Length to face of forks
- 957 mm
- Overall width
- 850 mm
- Fork dimensions
- 60/190/1,150 mm
- Ground clearance, laden, below mast
- 20 mm
- Ground clearance, centre of wheelbase
- 20 mm
- Aisle width for pallets 1000×1200 crossways
- 2,665/3,092 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,597/3,024 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф230 × 75mm
- Tyre size, rear
- Ф85 × 70mm
- Additional wheels (castor wheels)
- Ф130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x+1/4
- Distance between wheel arms/loading surfaces
- 560
General
- Drive
- Electric
- Operator type
- Standing
- Distance between fork-arms
- 560 mm
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
