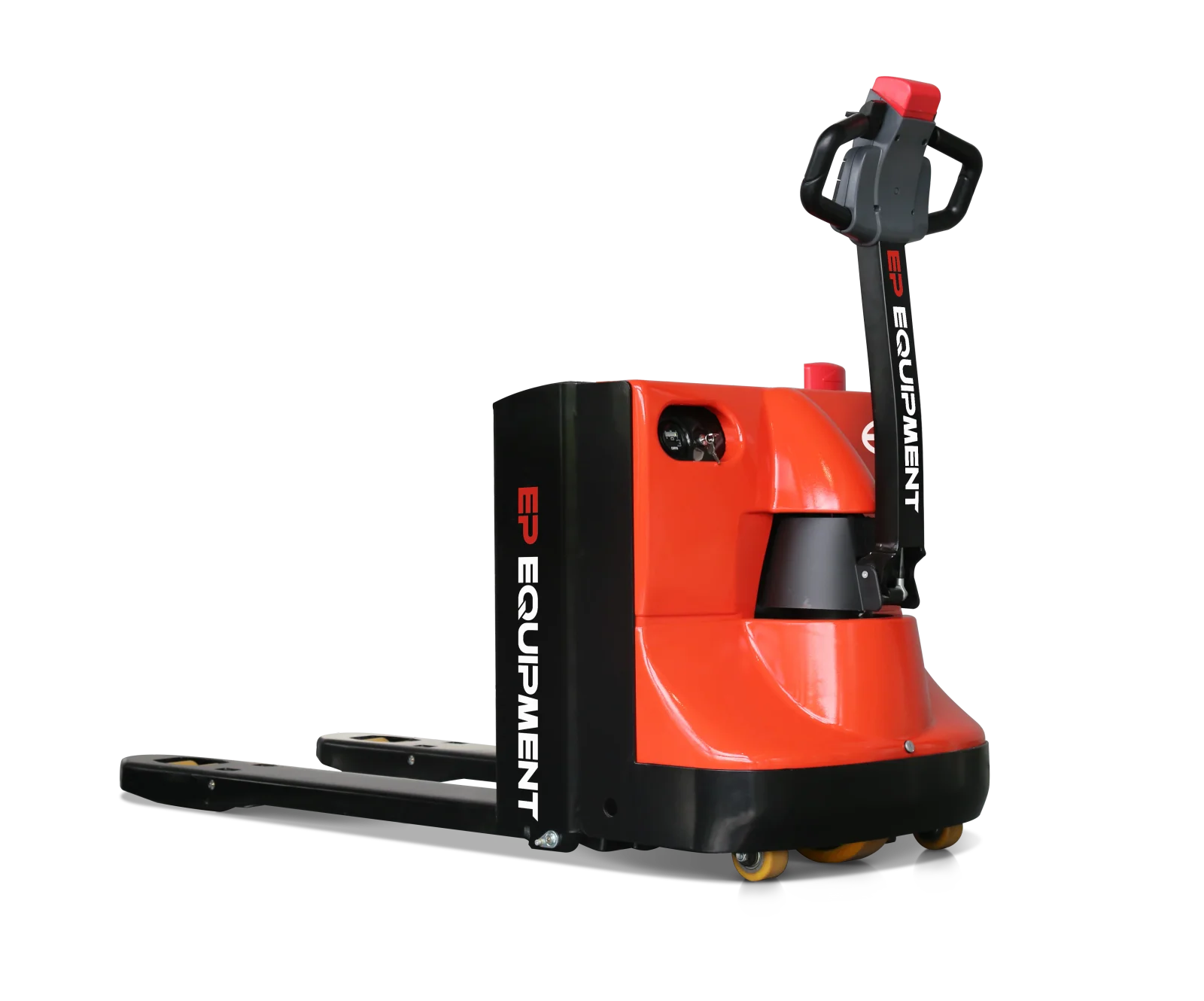

Heavy-duty pallet truck
EPT25-WA
- Load capacity
- 2,500 kg
- Lift height
- 120 mm
- Battery
- 24 V Li-ion
Overview
A heavy-duty pallet truck with a rated capacity of 2,500 kg, a lift height of 120 mm and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,500 kg
- Lift height
- 120 mm
- Travel speed, laden/unladen
- 5/5.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,600 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 916/982 mm
- Lift speed, laden/unladen
- 0.051/0.060 m/s
- Lowering speed, laden/unladen
- 0.032/0.039 m/s
Performance
- Height drawbar in driving position min./max.
- 715/1,200 mm
- Max. gradeability, laden/unladen
- 8/16 %
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 0.84 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 240 / 150 Ah
- Battery type
- Lead Acid/Li-ion
- Battery weight
- 220 / 50 kg
- Energy consumption according to DIN EN 16796
- 0.297kWh/h
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,418 mm
- Service weight
- 565 / 400 kg
- Axle loading, laden front/rear
- 985/1,580 / 820/1,580 kg
- Axle loading, unladen front/rear
- 460/105 / 295/105 kg
- Tread width, front
- 498 mm
- Tread width, rear
- 515 mm
- Overall length
- 1,769 mm
- Overall width
- 710 mm
- Fork dimensions
- 55 × 170 × 1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,400 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,255 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф230 × 75mm
- Tyre size, rear
- Ф85 × 70mm
- Additional wheels (castor wheels)
- Ф85 × 48mm
- Wheels, number front/rear (x=drive wheels)
- 1 x +2 / 4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 540 mm
- Turnover output according to VDI 2198
- 84t/h
- Turnover efficiency according to VDI 2198
- 177.59t/kWh
- Sound pressure level at the driver's seat
- 74 dB(A)
