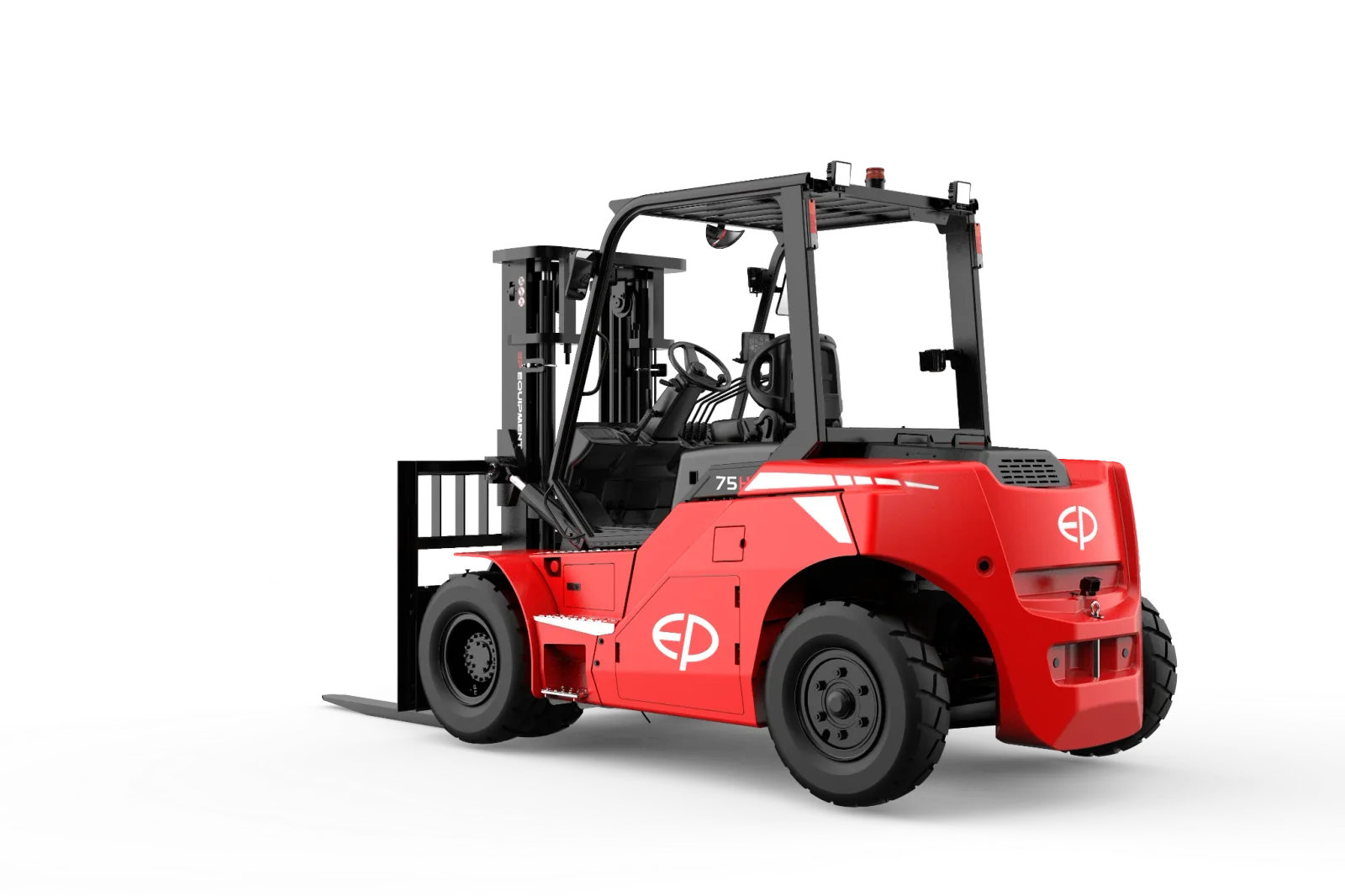

High capacity electric counterbalanced forklift
EFL75-6-HV-PRO
- Load capacity
- 7,500 kg
- Lift heightUp to 7,000 mm with optional mast
- 3,000 mm
- Battery
- 309 V
Overview
A high capacity electric counterbalanced forklift with a rated capacity of 7,500 kg, a lift height of 3,000 mm (up to 7,000 mm with optional mast) and a 309 V battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 7,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 7,000 mm with optional mast
- Travel speed, laden/unladen
- 25/26 km/h
- Battery
- 309 V
- Turning radius
- 3,255 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 613.5 mm
- Tilt of mast/fork carriage forward/backward
- 6/12 °
- Height, mast lowered
- 2,580 mm
- Free lift
- 170 mm
- Height, mast extended
- 4,470/4,055 mm
- Fork carriage ISO 2328, class/type A, B
- 4A
- Fork carriage width
- 1845（1995） mm
- Lift speed, laden/unladen
- 0.51/0.56 m/s
- Lowering speed, laden/unladen
- 0.42/0.43 m/s
Performance
- Max. drawbar pull, laden/unladen
- /N
- Max. gradeability, laden/unladen
- 25/28 %
- Service brake
- Mechanical/Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 60 kW
- Lift motor rating at S3 15%
- 78.5 kW
- Battery voltage/nominal capacity
- 309V/228AhV/Ah
- Battery weight
- 720 kg
- Energy consumption according to DIN EN 16796
- / ¹⁾kWh/h
- Type of drive unit
- PMSM
- Charger output current
- / A
Dimensions and weight
- Wheelbase
- 2,300 mm
- Service weight
- 10,725 kg
- Axle loading, laden front/rear
- 16,183/2,042 kg
- Axle loading, unladen front/rear
- 4,738/5,987 kg
- Tread width, front
- 1,498 mm
- Tread width, rear
- 1,718 mm
- Height of overhead guard (cabin)
- 2,460 mm
- Seat height relating to SIP/stand height
- 1,470 mm
- Coupling height
- 600 mm
- Overall length
- 4,780 mm
- Length to face of forks
- 3,560 mm
- Overall width
- 2,028 mm
- Fork dimensions
- 70 × 150 × 1,220 mm
- Ground clearance, laden, below mast
- 160 mm
- Ground clearance, centre of wheelbase
- 225 mm
- Aisle width for pallets 1000×1200 crossways
- 5,288.5 mm
- Aisle width for pallets 800 × 1200 lengthways
- 5,288.5 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 8.25-15-14PRmm
- Tyre size, rear
- 8.25-15-14PRmm
- Wheels, number front/rear (x=drive wheels)
- 4x/2
General
- Drive
- Electric
- Operator type
- Seated
- Turnover output according to VDI 2198
- /t/h
- Turnover efficiency according to VDI 2198
- /t/kWh
- Oil volume for attachments
- /ℓ/min
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- / dB(A)
