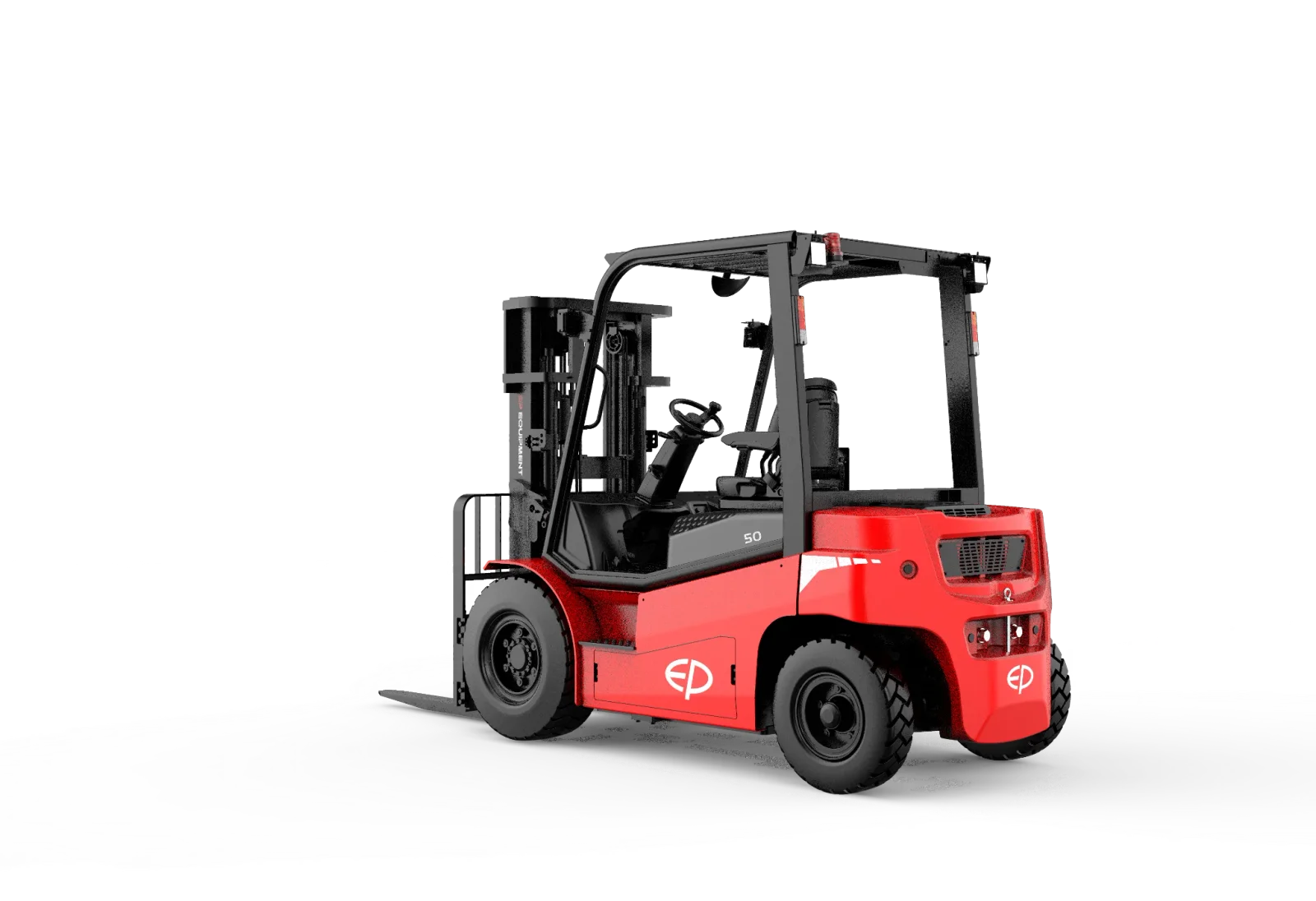

High capacity electric counterbalanced forklift
EFL404
- Load capacity
- 4,000 kg
- Lift heightUp to 7,000 mm with optional mast
- 3,000 mm
- Battery
- 96 V Li-ion
Overview
A high capacity electric counterbalanced forklift with a rated capacity of 4,000 kg, a lift height of 3,000 mm (up to 7,000 mm with optional mast) and a 96 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 4,000 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 7,000 mm with optional mast
- Travel speed, laden/unladen
- 16/17 km/h
- Battery
- 96 V Li-ion
- Turning radius
- 2,680 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 545 mm
- Tilt of mast/fork carriage forward/backward
- 6/12 °
- Height, mast lowered
- 2,250 mm
- Free lift
- 150 mm
- Height, mast extended
- 4,177/3,835 mm
- Fork carriage ISO 2328, class/type A, B
- 3A
- Fork carriage width
- 1380（1424） mm
- Lift speed, laden/unladen
- 0.44/0.46 m/s
- Lowering speed, laden/unladen
- 0.42/0.35 m/s
Performance
- Max. drawbar pull, laden/unladen
- /N
- Max. gradeability, laden/unladen
- 17/25 %
- Service brake
- Mechanical/Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 37 kW
- Lift motor rating at S3 15%
- 30 kW
- Battery voltage/nominal capacity
- 96V/560AHV/Ah
- Battery voltage
- 96 V
- Battery nominal capacity K5
- 560 Ah
- Battery type
- Li-ion
- Battery weight
- 510 kg
- Type of drive unit
- PMSM
Dimensions and weight
- Wheelbase
- 2,000 mm
- Service weight
- 6,450 kg
- Axle loading, laden front/rear
- 9,442/1,008 kg
- Axle loading, unladen front/rear
- 3,352/3,098 kg
- Tread width, front
- 1,176 mm
- Tread width, rear
- 1,190 mm
- Height of overhead guard (cabin)
- 2,400 mm
- Seat height relating to SIP/stand height
- 1,290 mm
- Coupling height
- 640 mm
- Overall length
- 4,125 mm
- Length to face of forks
- 3,055 mm
- Overall width
- 1,495 mm
- Fork dimensions
- 50 × 150 × 1,070 mm
- Ground clearance, laden, below mast
- 150 mm
- Ground clearance, centre of wheelbase
- 180 mm
- Aisle width for pallets 1000×1200 crossways
- 4,495 mm
- Aisle width for pallets 800 × 1200 lengthways
- 4,625 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 8.25-15-14PRmm
- Tyre size, rear
- 7.00-12-12PRmm
- Wheels, number front/rear (x=drive wheels)
- 2x/2
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- / dB(A)
