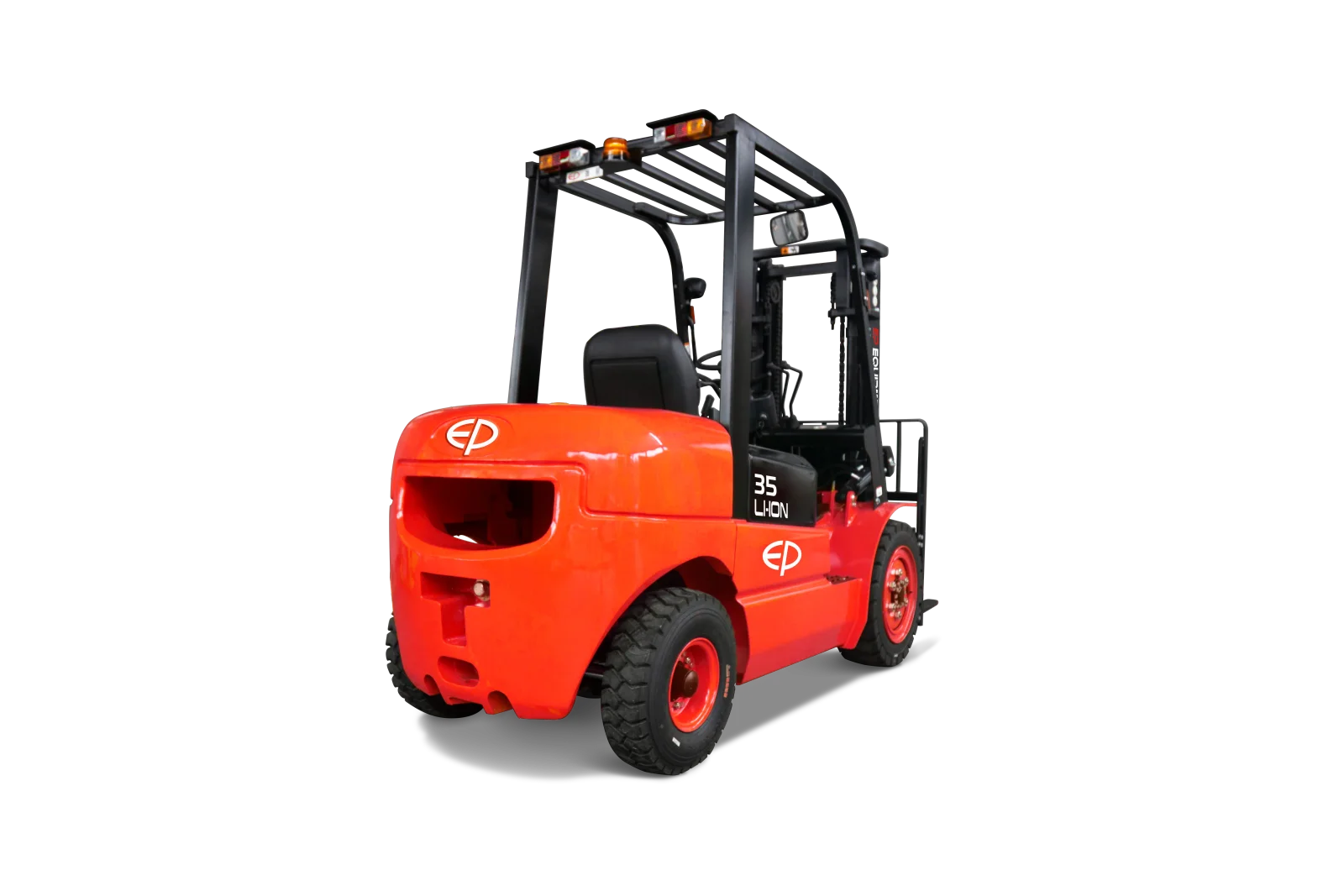

Electric counterbalance forklift truck
EFL352
- Load capacity
- 3,500 kg
- Lift heightUp to 6,000 mm with optional mast
- 3,000 mm
- Battery
- 80 V Li-ion
Overview
An electric counterbalance forklift truck with a rated capacity of 3,500 kg, a lift height of 3,000 mm (up to 6,000 mm with optional mast) and an 80 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 3,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 6,000 mm with optional mast
- Travel speed, laden/unladen
- 11/12 km/h
- Battery
- 80 V Li-ion
- Turning radius
- 2,645 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 481 mm
- Tilt of mast/fork carriage forward/backward
- 6/10 °
- Height, mast lowered
- 2,070 mm
- Free lift
- 120 mm
- Height, mast extended
- 4,110 mm
- Fork carriage ISO 2328, class/type A, B
- 3A
- Fork carriage width
- 1,150 mm
- Lift speed, laden/unladen
- 0.26/0.34 m/s
- Lowering speed, laden/unladen
- 0.4/0.43 m/s
Performance
- Max. gradeability, laden/unladen
- 15/15 %
- Service brake
- Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 10 kW
- Lift motor rating at S3 15%
- 16 kW
- Battery voltage
- 80 V
- Battery nominal capacity K5
- 280 Ah
- Battery type
- Li-ion
- Battery weight
- 186 kg
- Energy consumption according to DIN EN 16796
- 8.61kWh/h
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,810 mm
- Service weight
- 4,560 kg
- Axle loading, laden front/rear
- 7,100/960 kg
- Axle loading, unladen front/rear
- 1,670/2,890 kg
- Tread width, front
- 1,010 mm
- Tread width, rear
- 980 mm
- Height of overhead guard (cabin)
- 2,190 mm
- Seat height relating to SIP/stand height
- 1,130 mm
- Coupling height
- 320 mm
- Overall length
- 3,940 mm
- Length to face of forks
- 2,870 mm
- Overall width
- 1,230 mm
- Fork dimensions
- 50 × 122 × 1,070 mm
- Ground clearance, laden, below mast
- 120 mm
- Ground clearance, centre of wheelbase
- 150 mm
- Aisle width for pallets 1000×1200 crossways
- 4,326 mm
- Aisle width for pallets 800 × 1200 lengthways
- 4,526 mm
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 28 × 9-15mm
- Tyre size, rear
- 6.50-10mm
- Wheels, number front/rear (x=drive wheels)
- 2x/2
General
- Drive
- Electric
- Operator type
- Seated
- Turnover output according to VDI 2198
- 210
- Turnover efficiency according to VDI 2198
- 28.73
- Operating pressure for attachments
- 180bar
- Oil volume for attachments
- 25ℓ/min
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- <74 dB(A)
Bought in Aruba. Supported in Aruba.
With ProLift you deal with one local partner, from the first question to service years later.
-
Ready to work
New machines are delivered fully assembled, inspected and ready to work.
-
Maintenance and repairs
Preventive maintenance and repairs to keep your machine running.
-
Parts
Support and parts arranged directly for Aruba, to keep downtime short.
-
One point of contact
One dedicated partner from the first quote to final delivery and beyond.
Interested in the EFL352?
Talk to ProLift. We'll help you choose the right configuration for your operation.
