4-wheel Li-ion counterbalance forklift
EFL181
- Load capacity
- 1,800 kg
- Lift heightUp to 4,800 mm with optional mast
- 3,000 mm
- Battery
- 48 V Li-ion
Overview

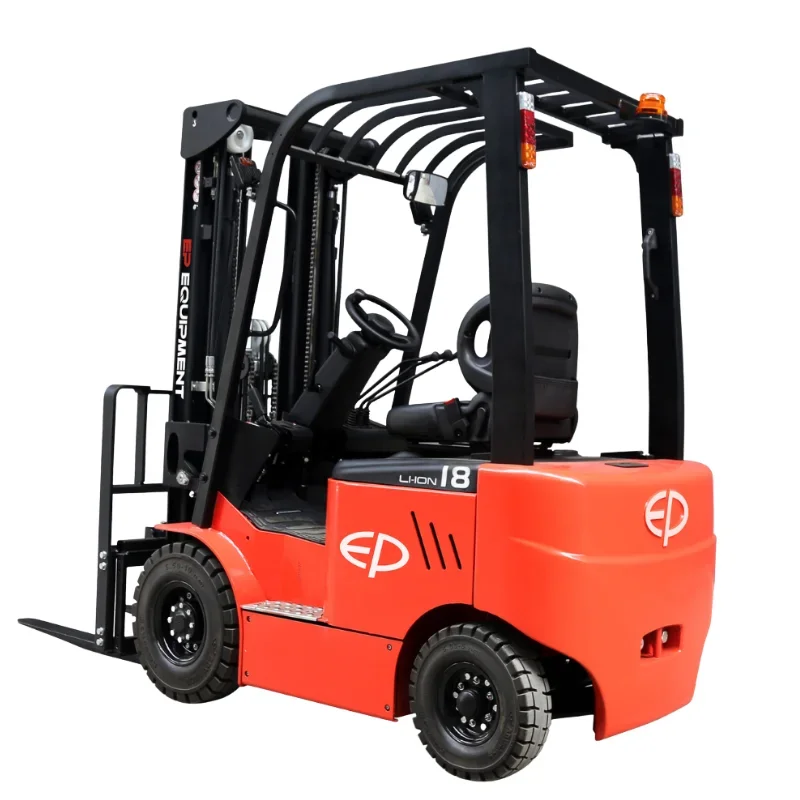

A 4-wheel Li-ion counterbalance forklift with a rated capacity of 1,800 kg, a lift height of 3,000 mm (up to 4,800 mm with optional mast) and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,800 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 4,800 mm with optional mast
- Travel speed, laden/unladen
- 8.5/9 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,920 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 405 mm
- Tilt of mast/fork carriage forward/backward
- 6/10 °
- Height, mast lowered
- 1,995 mm
- Free lift
- 130 mm
- Height, mast extended
- 4,028 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 1,040 mm
- Lift speed, laden/unladen
- 0.25/ 0.3 m/s
- Lowering speed, laden/unladen
- 0.43/ 0.45 m/s
Performance
- Max. gradeability, laden/unladen
- 10.5/15 %
- Service brake
- Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 6 kW
- Lift motor rating at S3 15%
- 7.5 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 150 Ah
- Battery type
- Li-ion
- Battery weight
- 115 kg
- Energy consumption according to DIN EN 16796
- 3.88kWh/h
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,260 mm
- Service weight
- 3,030 kg
- Axle loading, laden front/rear
- 4,395/435 kg
- Axle loading, unladen front/rear
- 1,300/1,730 kg
- Tread width, front
- 905 mm
- Tread width, rear
- 920 mm
- Height of overhead guard (cabin)
- 2,080 mm
- Seat height relating to SIP/stand height
- 1,060 mm
- Coupling height
- 370 mm
- Overall length
- 2,935 mm
- Length to face of forks
- 2,015 mm
- Overall width
- 1,080 mm
- Fork dimensions
- 40 × 100 × 920 mm
- Ground clearance, laden, below mast
- 115 mm
- Ground clearance, centre of wheelbase
- 120 mm
- Aisle width for pallets 1000×1200 crossways
- 3,525 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,725 mm
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 6.5-10mm
- Tyre size, rear
- 5.00-8mm
- Wheels, number front/rear (x=drive wheels)
- 2x/ 2
General
- Drive
- Electric
- Operator type
- Seated
- Turnover output according to VDI 2198
- 82.8t/h
- Turnover efficiency according to VDI 2198
- 21.34t/kWh
- Operating pressure for attachments
- 180bar
- Oil volume for attachments
- 25ℓ/min
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 70 dB(A)
